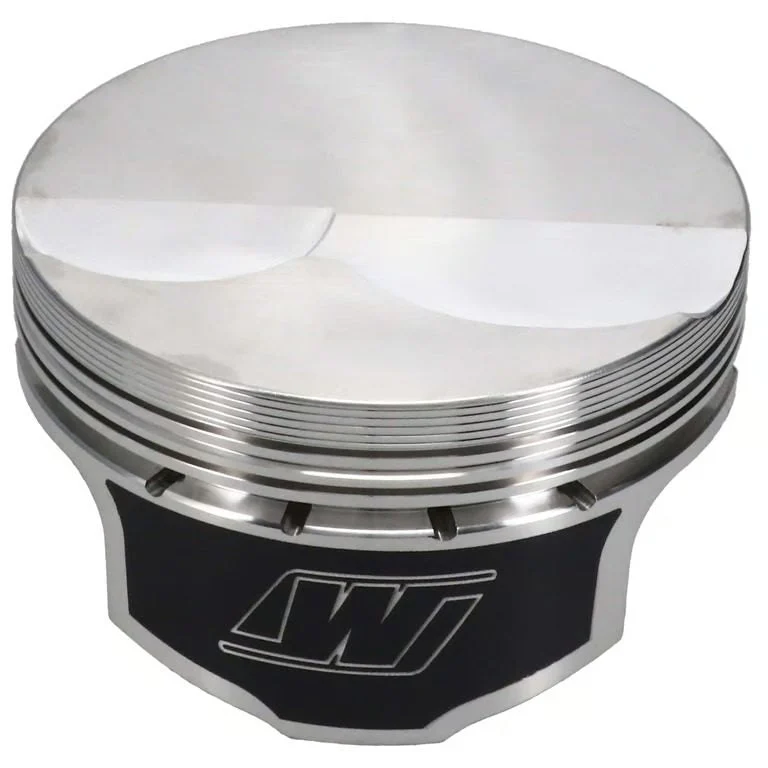

Wiseco RED0078X35 – Chevrolet LS RED- LS 4.000in Stroke Flat Tops 4.035in Bore – Set of 8

Description

Wiseco RED0078X35 – Chevrolet LS RED- LS 4.000in Stroke Flat Tops 4.035in Bore – Set of 8

Wiseco Chevrolet LS Piston Set, 4.035 in. Bore, 1.105 in. Compression Height, 0.927 in. Pin Diameter, RED Series, Set of 8.

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

• Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
• Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
• ArmorGlide skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
• Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
• Accumulator groove helps maintain consistent ring seal and power
• Each part number includes premium rings no need for additional sourcing

Product Series: RED SeriesBore Diameter: 4.035Stroke: 4.000Rod Length: 6.125Compression Height: 1.105Piston Volume: -4.00Piston Material: 2618Skirt Coating: YesForging Type: StruttedPiston Quantity: 8Wrist Pin Quantity: 8Ring Set Included: YesRing Set Part Number: 4037GFXRing Quantity: 8Top Compression Ring Thickness: 1.20Second Compression Ring Thickness: 1.20Oil Ring Thickness: 3.00Wrist Pin Included: YesWrist Pin Part Number: S736Wrist Pin Material: 5115Wrist Pin Style: FloatingWrist Pin Outer Diameter: 0.927Wrist Pin Retainer Included: YesWrist Pin Retainer Part Number: W5595Wrist Pin Retainer Quantity: 16Wrist Pin Retainer Style: Wire LockWrist Pin Retainer Material: Chrome SiliconProduct Type: Engine Piston SetEngine: LSEngine – Web: LSMake: ChevroletMake – Web: ChevyIndustry: AutomotiveProduct Market: DomesticCategory Hierarchy: Auto>Pistons>Piston Kits>Domestic>RED SeriesOut of Stock Message: Estimated Shipped Date 3-4 WeeksTitle – Web: RED Series Chevy LS Piston Set of 8 – 4.035 in. Bore – 1.105 in. CH, -4.00 CCEngine Type: ICEEBAY Category ID: 33623
