Whiteline GS1-SUB011 – Subaru Impreza WRX VB Grip Series Stage 1 Kit

Description

Whiteline GS1-SUB011 – Subaru Impreza WRX VB Grip Series Stage 1 Kit

Suspension Handling Kit – Grip Series 1 – Lowering – 25 mm Front / Rear – Coil Springs / Sway Bars / Sway Bar Bushings / End Links – Subaru WRX 2022-24 – Kit

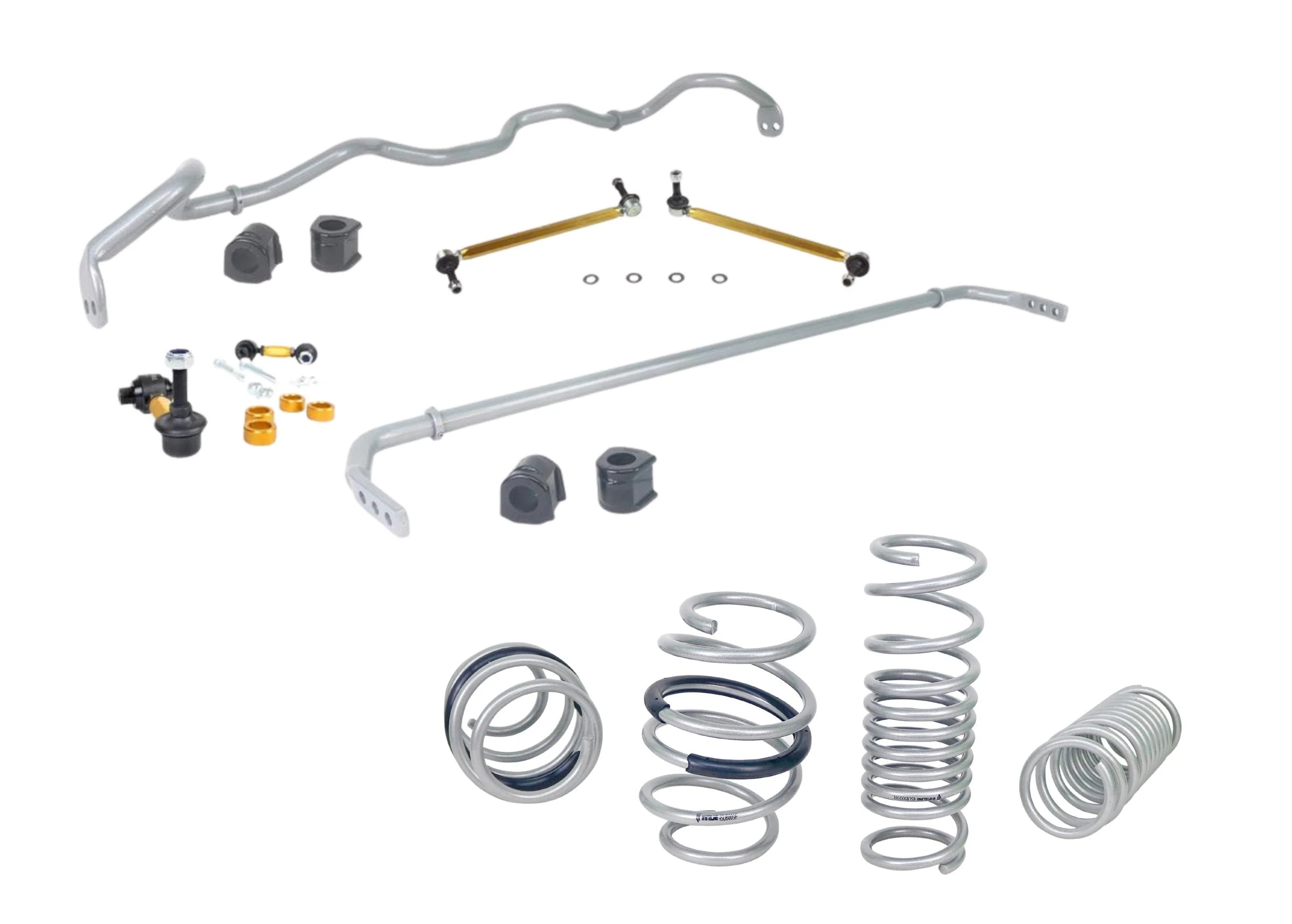

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. This kit contains 4.5kg/mm (253lb/in) front rated springs that provide a 25mm drop while the 5.4kg/mm (300lb/in) rated rears deliver a desirable 25mm to the vehicle. Boasting a 24mm 2 point adjustable front sway bar and 22mm 3 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.

• Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
• Engineered for superior fit/performance with OEM shocks while produced to the finest tolerances ensuring exact fitment.
• Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
• Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
• Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
• Whiteline’s latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.

Front Spring Rate: 253Front Sway Bar Adjustable: YesFront Sway Bar Diameter: 24Front Sway Bar Included: YesFront Sway Bar Links Included: YesInstallation Difficulty: DifficultInstallation Time (hrs): 6Kit Contents: 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Spacers, 2 Bolts, 8 Washers, 6 NutsRear Spring Rate: 300Rear Sway Bar Adjustable: YesRear Sway Bar Diameter: 22Rear Sway Bar Links Included: YesWheel Alignment Required: Yes
