Mishimoto MMTC-GMP-TBV – 2012-2019 Dodge V6 8HP Transmission Thermal Bypass Valve Kit

Description

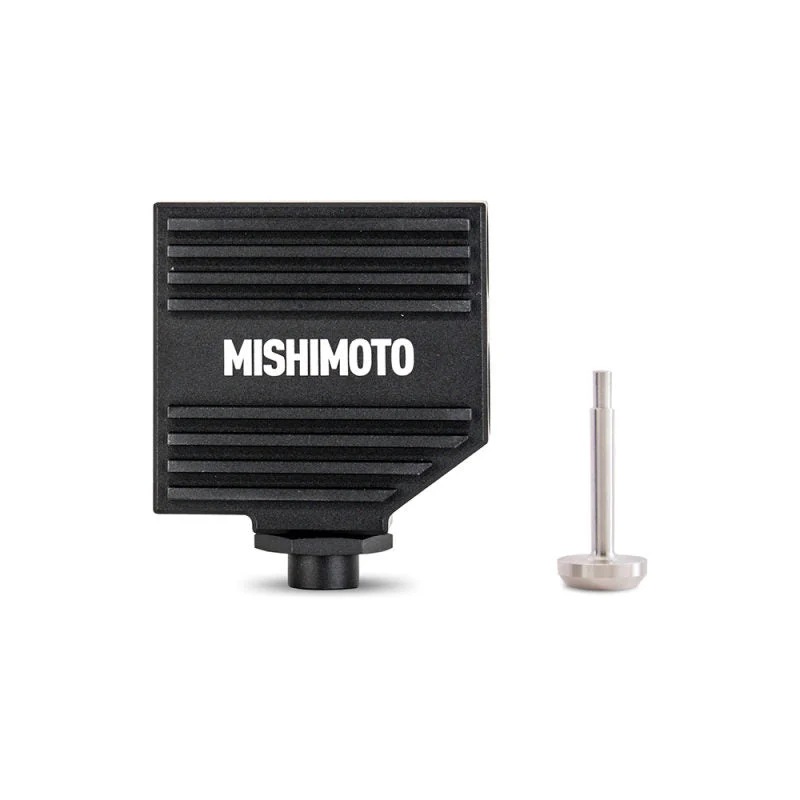

Mishimoto MMTC-GMP-TBV – 2012-2019 Dodge V6 8HP Transmission Thermal Bypass Valve Kit

Thermal Bypass Valve Kit, fits Dodge Charger/Challenger 3.6L 2012-2023

Automatic transmission oil cooler designed to regulate fluid temperature and prevent overheating. Enhances transmission longevity, maintains performance, and features durable construction with a precise fit.

Mishimoto has identified a common failure point in the transmission cooling system of your 2012-2023 Mopar: the thermal bypass valve. This component acts as a thermostat, restricting fluid flow to the external transmission cooler based on temperature. Unfortunately, many vehicle owners have found these factory units are prone to failure, often sticking in the closed position resulting in an overheating transmission. The engineering team at Mishimoto has created a high-quality thermal bypass replacement with numerous additional features to ensure consistent performance and long transmission life. This unit is constructed from durable CNC-machined billet aluminum, featuring a heat sink design that provides improved heat dissipation and unique styling. The included thermostat opens at the stock temperature of 160F (71C) but can be customized to suit your needs with any available Mishimoto thermostat. The Mishimoto thermal bypass kit also includes a bypass that can replace the thermostat, allowing constant fluid flow to the transmission cooler. The bypass is ideal for vehicles requiring maximum cooling while operating in extreme driving conditions or hot climates. This kit easily installs within one hour and connects directly to all factory cooler piping. This 2012-2023 Charger/Challenger/Chrysler 300 Thermal Bypass Full Flow Valve Kit is built to last a lifetime with a durable black anodized finish and our Mishimoto Lifetime Warranty.

• Eliminates failure-prone stock bypass valve
• Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
• Improved flow over the stock bypass valve

SellingPoint01: Direct fit for 3.6L Dodge Challenger/Charger/Chrysler 300 w/ 8HP transmissionSellingPoint02: Eliminates failure-prone stock bypass valveSellingPoint03: Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climatesSellingPoint04: Improved flow over the stock bypass valveSellingPoint05: Installs in less than 1 hourSellingPoint06: Durable CNC-machined billet aluminum constructionSellingPoint07: Helps extend transmission life and prevent overheatingSellingPoint08: Includes 160F thermostat to match stock valve opening tempSellingPoint09: Fits with stock transmission cooler piping, requiring no modification for installationSellingPoint10: Integrated heat-sink fins provide unique styling and added heat dissipationSellingPoint11: Durable anodized finishSellingPoint12: Mishimoto Lifetime WarrantySellingPoint13: N/ASellingPoint14: N/ASellingPoint15: N/AInstall Difficulty: 2Core Height: 0Core Material: AluminumCore Thickness: 0Core Width: 0Electric Fan: NoFinish: Natural AluminumGrade Type: PerformanceHeight: 0TechSpec Applications: Chrysler 300 3.6L V6 2012-2023–Dodge Challenger 3.6L V6 2015-2023–Dodge Charger 3.6L V6 2012-2023–Ram 1500 TRX V8 (6.2L) 2021-2024—- For vehicles equipped with 8HP45 or 845RE 8 Speed Automatic TransmissionTechSpec Engine Codes: PentastarTechSpec Chassis Codes: LDTechSpec Includes: (1) CNC-Machined Billet Aluminum Thermal Bypass Valve–(1) Removable Thermostat–(1) Removable Thermostat Bypass w/ Installation Hardware–(1) Assembly Notecard–Mishimoto Lifetime WarrantyTechSpec Note: This performance thermostatic bypass valve only fits vehicles with 8-speed automatic transmissions–Mishimoto does not recommend customers in cold climates install the thermostat bypass to avoid overcooling of the transmission fluidTechSpec Mishimoto Activation Temperature (F): 160TechSpec OEM Activation Temperature (F): 160Inlet Diameter: 0.75Line Included: NoMounting Hardware Included: YesOutlet Diameter: 0.75Thickness: 0Width: 0
