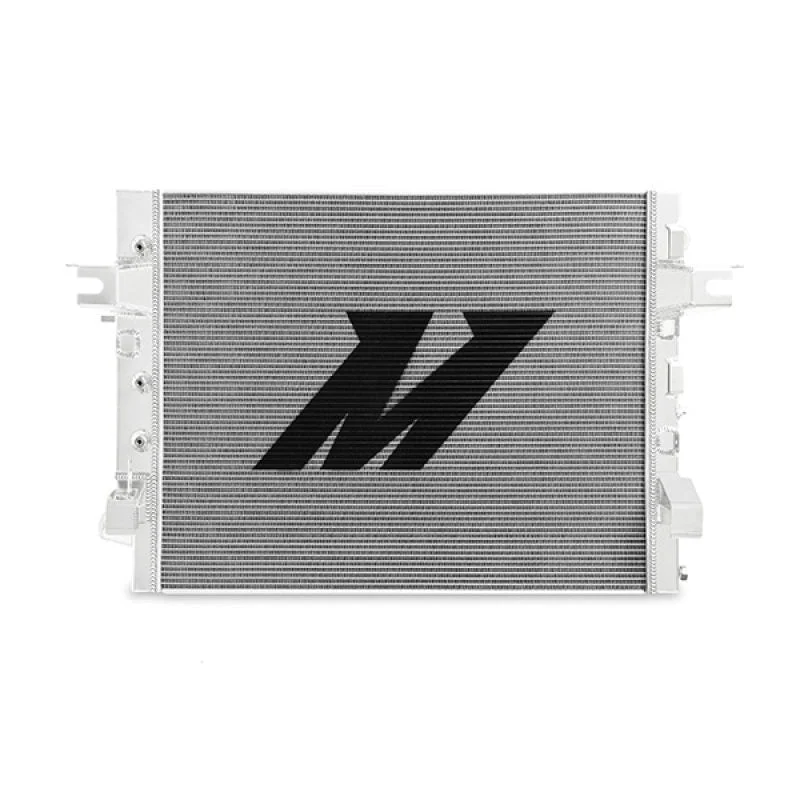

Mishimoto MMRAD-RAM-13 – 13+ Ram 2500/3500 6.7L Cummins Aluminum Radiator

Description

Mishimoto MMRAD-RAM-13 – 13+ Ram 2500/3500 6.7L Cummins Aluminum Radiator

Performance Aluminum Radiator, fits Dodge 6.7L Cummins 2013-2018

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them.The plastic end-tanks of the stock Ram radiator are prone to cracking and leaks over time. Add the increased stress and heat created by power-adding modifications and you have a recipe for disaster. But that’s where Mishimoto can help.Our new 2013-2018 Ram 2500 / 3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully-aluminum, TIG-welded construction, this radiator is built as tough as your truck. A 63-percent increase in coolant capacity, and 41-percent larger surface area mean you can pile on the power and never worry about the heat.As with all of our products, this radiator is backed up by Mishimoto’s Lifetime Warranty. Doesn’t your Ram deserve a radiator worthy of legend?

• Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
• Durable fully aluminum construction with TIG-welded end tanks and fittings
• Features a 2-in thick, three-row core for efficient cooling under high loads

Install Difficulty: 5Core Finish: UncoatedCore Height: 22Core Length: 26.75Core Material: AluminumCore Row Quantity: 3Core Thickness: 1.88Down Flow Or Cross Flow Type: Cross FlowDrain Plug Included: YesDrain Plug Thread Size: M12 – 1.5Fluid Capacity: 7.94Inlet Diameter: 1.61Inlet Location: Top LeftOutlet Diameter: 1.61Outlet Location: Bottom RightOverall Height: 22Overall Length: 33.5Overall Width: 2.75Radiator Cap Included: NoTransmission Oil Cooler Fitting Type: N/ATransmission Oil Cooler Included: NoTechSpec Overall Height (in): 22TechSpec Overall Length (in): 33.5TechSpec Overall Width (in): 2.75TechSpec Core Length (in): 26.75TechSpec Core Height (in): 22TechSpec Fluid Capacity (gal): 7.94 .TechSpec Rows: 3TechSpec Inlet (in): 1.61TechSpec Outlet (in): 1.61TechSpec Core Thickness (in): 1.88TechSpec Drain Plug Thread Size: M12 x 1.5TechSpec DPI: N/ATechSpec Material: AluminumTechSpec Applications: Ram 2500 6.7L L6 2013-2018–Ram 3500 6.7L L6 2013-2018–Ram 4500 6.7L L6 2013-2018–Ram 5500 6.7L L6 2013-2018TechSpec Engine Codes: N/ATechSpec Chassis Codes: N/ATechSpec Note: N/ATechSpec Includes: Mishimoto Radiator–Magnetic Drain Plug–(2) Transmission Cooler Fittings– M6 x 1.0 – 16mm Bolt–(3) M6 x 1.0 – 14mm Bolts–(4) M6 x 1.0 – 12mm Bolts–(3) M6 Flat Washers–Mishimoto Lifetime WarrantySellingPoint01: Direct fit for the 2013-2018 Dodge Ram 6.7L CumminsSellingPoint02: Increases coolant capacity by 63-percent and surface area by 41-percent to maximize coolingSellingPoint03: Durable fully aluminum construction with TIG-welded end tanks and fittingsSellingPoint04: Features a 2-in thick, three-row core for efficient cooling under high loadsSellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling systemSellingPoint06: Mishimoto Lifetime WarrantySellingPoint07: N/ASellingPoint08: N/ASellingPoint09: N/ASellingPoint10: N/ASellingPoint11: N/ASellingPoint12: N/ASellingPoint13: N/ASellingPoint14: N/ASellingPoint15: N/A
