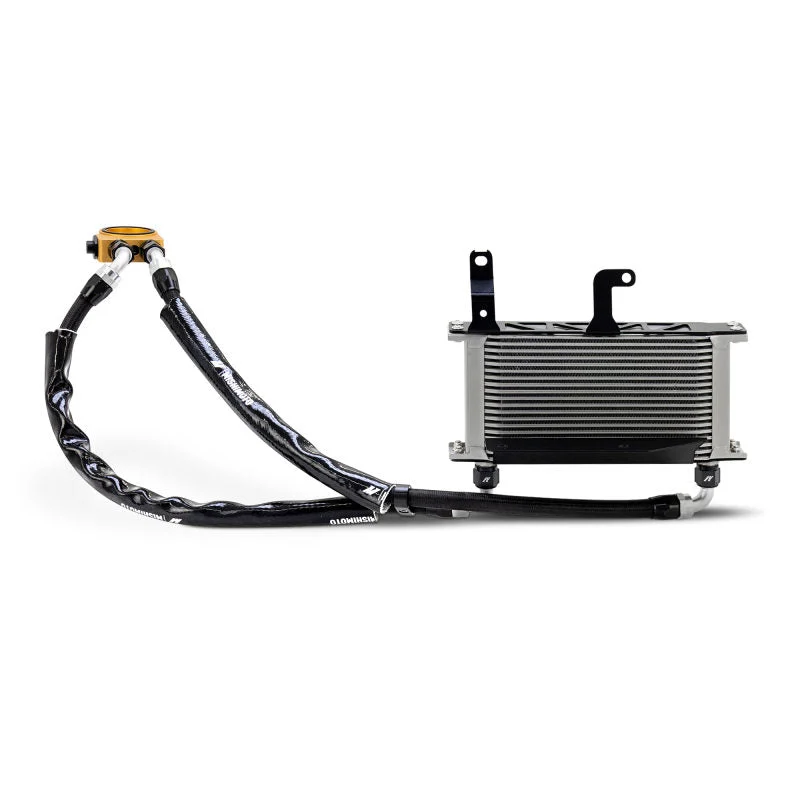

Mishimoto MMOC-CTR-23TSL – 2023+ Honda Civic Type R Oil Cooler Kit – Silver

Description

Mishimoto MMOC-CTR-23TSL – 2023+ Honda Civic Type R Oil Cooler Kit – Silver

Oil Cooler Kit, Silver, Fits Honda Civic Type R 2023+

High-performance engine oil cooler designed to regulate oil temperature and protect critical engine components. Efficient heat dissipation improves durability, maintains lubrication, and ensures reliable performance.

The 2023+ Honda Civic Type R is built to excel on the street or track, but even the most spirited drives can push engine oil to its limits. With the FL5 CTR’s high-revving 2.0L turbocharged engine, extended hard driving can raise oil temperatures, risking performance and longevity. The Mishimoto Oil Cooler Kit for the 2023+ Honda Civic Type R is designed to keep oil temps in check while increasing system capacity, giving enthusiasts the confidence to push their Type R harder and longer. — Our oil cooler kit increases total oil capacity by 12% over stock and features a 19-row stacked plate cooler strategically positioned to receive maximum airflow. This cooler is also thermostatic to help bring oil up to optimal temperature for daily driving, and testing showed 5F cooler oil temperatures compared to stock. — Installation is straightforward with all direct-fit components included. Black nylon oil lines connect seamlessly, and our billet oil line separator aligns hoses and keeps them securely fastened. The horn is relocated using the existing horn bracket, ensuring wiring harness integrity and maintaining horn position. High-temperature silicone and fiberglass sleeves are included to protect the stainless steel lines, and minimal trimming of a plastic trim piece is required to properly install the lines. — This kit combines performance, durability, and thoughtful design to maintain oil temperatures during spirited driving sessions. Backed by the Mishimoto Lifetime Warranty, the 2023+ Civic Type R Oil Cooler Kit provides a reliable solution for enthusiasts who want more cooling, more capacity, and more peace of mind behind the wheel.

• Robust 19-row stacked plate cooler positioned for maximum airflow
• 12% increase in oil capacity over stock for improved thermal management
• Proven to keep oil temps 5F cooler than stock during demanding driving conditions

TechSpec Engine Codes: N/ATechSpec Chassis Codes: N/ATechSpec Installation Notes: N/ATechSpec Caution: It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.TechSpec Overall Height (in): 9.98TechSpec Overall Length (in): 12.99TechSpec Overall Width (in): 5.37TechSpec Inlet: AN 10TechSpec Outlet: AN 10TechSpec Includes: (1) 19 Row Oil Cooler (1) Bracket Kit (1) Hardware Kit (1) Oil Line Kit (1) Line Seperator (1) Sandwich Plate KitTechSpec Applications: N/ATechSpec Fluid Capacity (qts): 0.65 QuartsInstall Difficulty: 3OptionLabel: SilverTechSpec Note: Installation requires trimming or removal of factory duct piece (71336-T20-A00). Trimming/removal of this piece will not affect performance.—-The FL5 Civic Type R DOES NOT have a factory oil temperature sensor. The oil temperature readings given by the vehicle display are an inferred value and are no longer accurate once an oil cooler is added.Base Height: 9.98Color: SilverCore Color: SilverCore Height: 5.43Core Row Quantity: 19Core Thickness: 1.97Core Type: Bar-and-PlateCore Width: 11Finish: AnodizedFluid Capacity: 0.65Grade Type: PerformanceInlet Fitting Gender: MaleInlet Fitting Type: AN FlareInlet Outside Diameter: 0.625Outlet Fitting Gender: MaleOutlet Fitting Type: AN FlareOutlet Outside Diameter: 0.625Width: 5.37SellingPoint01: Robust 19-row stacked plate cooler positioned for maximum airflowSellingPoint02: 12% increase in oil capacity over stock for improved thermal managementSellingPoint03: Proven to keep oil temps 5°F cooler than stock during demanding driving conditionsSellingPoint04: Direct-fit design allows for simple and clean installationSellingPoint05: Billet oil line separator keeps routing organized and secureSellingPoint06: High-temperature silicone and fiberglass protective sleeves coat stainless steel lines to ensure strength and reliabilitySellingPoint07: Relocates horn using existing bracket location with no wiring modifications neededSellingPoint08: Mishimoto Lifetime WarrantySellingPoint09: N/ASellingPoint10: N/ASellingPoint11: N/ASellingPoint12: N/ASellingPoint13: N/ASellingPoint14: N/ASellingPoint15: N/ATechSpec Rows: 19TechSpec Core Construction: Stacked PlateTechSpec Core Length (in): 11TechSpec Core Height (in): 5.43TechSpec Core Thickness (in): 1.97
