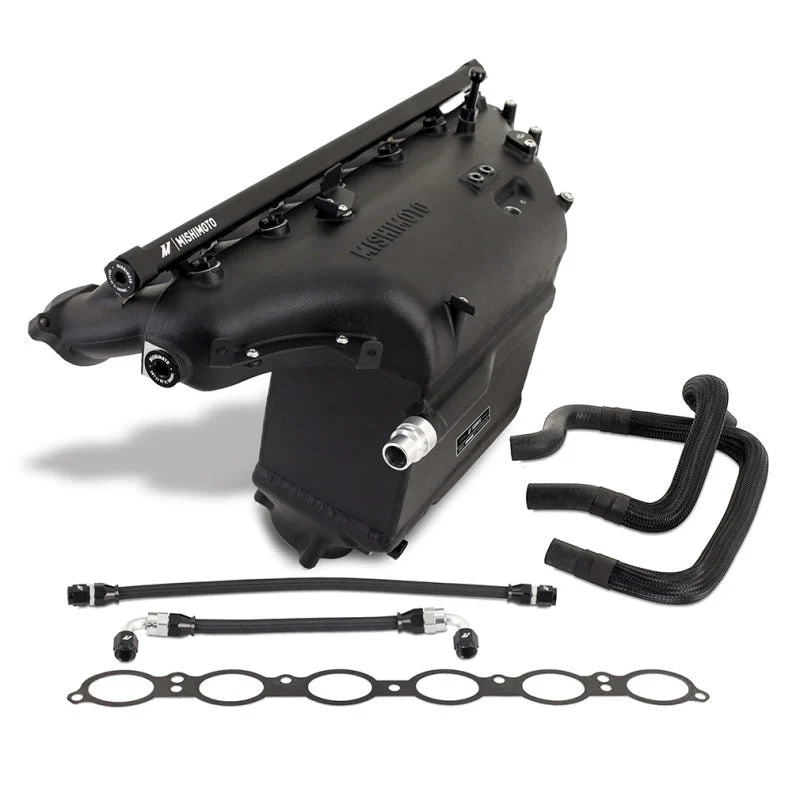

Mishimoto MMINT-G80-21BK – 2021+ BMW G80 M3/M4 Performance Intercooler – Black
Performance Charge Air/Manifold, Black, fits BMW G8X M2/M3/M4 2021+
Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.
—-Insane power levels require equally insane amounts of fuel, so we’ve added provisions for port fuel injection, including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injector ports feature optimized geometry for the perfect mixing of air and fuel, with no drilling required. The included PTFE -AN fuel lines and fittings are suitable for ethanol and tee into the stock fuel lines. —-If cooling, flow, and reliability weren’t enough, we also designed our charge air cooler to fit like stock. This kit includes brackets to keep your wiring tidy, a mount to fit the stock engine cover, and custom EVAP lines for a seamless installation. A convenient cutout in the plenum allows easy access to the oil filter without affecting flow. Like all Mishimoto products, this performance charge air cooler for the 2021+ BMW G80 M3 is backed by our Mishimoto Lifetime Warranty for a lifetime of exceptional performance. If you want the ultimate upgrade to squeeze serious power from your S58 engine, this Mishimoto charge air cooler manifold is for you.
- Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks, ensuring superior durability and longevity compared to plastic stock tanks
- Includes billet fuel rail, lines, and precision-drilled ports for port injection
- Includes PTFE -AN fuel lines that tee into stock fuel lines
TechSpec Maximum Recommended Horsepower: 1150TechSpec Overall Length (in): 11.5TechSpec Overall Height (in): 13.1TechSpec Overall Width (in): 21TechSpec Core Type: Bar-And-PlateTechSpec Core Thickness (in): 4.9TechSpec Core Length (in): 9.8TechSpec Core Height (in): 6.3TechSpec Inlet (in): N/ATechSpec Outlet (in): N/ATechSpec Weight (lbs): N/ATechSpec Note: Use of the included fuel rail is optional and for race-use only. The fuel rail has a tamper-proof sticker and may be removed only if the vehicle will no longer be used on the street or highway. Check local emissions regulations before removing.TechSpec Includes: (1) Mishimoto Charge Air Cooler Manifold–(1) Intake Manifold Gasket–(1) Manifold/Intercooler Accessory Bracket Set–(6) -6 ORB Plugs–(6) -6 ORB to 1/8-in NPT Adapters–(6) -6 ORB to 1/16-in NPT Adapters–(1) Fuel Rail–(6) Fuel Injector Blanks–(2) -8 ORB Plugs–(1) -10 ORB Plug–(2) 1/8-in NPT Plugs–(2) EVAP System Hoses–(1) Port Injection Fuel Line Kit–(1) Hardware Kit–Mishimoto Lifetime WarrantyTechSpec Installation Notes: N/ATechSpec Pipe Shape: N/ATechSpec Pipe Diameter: N/ATechSpec Pipe Length: N/ATechSpec Centerline Radius: N/AInstall Difficulty: 4OptionLabel: N/ACold Side Pipe Inside Diameter: 0Core Thickness: 4.9Core Length: 9.8Core Height: 6.3Core Color: BlackCore Construction: Bar-and-PlateCore Material: AluminumCoupler Color: BlackCoupler Material: SiliconeEnd Tank Construction: CastEnd Tank Material: AluminumGrade Type: PerformanceHose Clamps Included: YesHot Side Pipe Inside Diameter: 0Inlet Diameter: 0Outlet Diameter: 0Intercooler Type: Air-to-AirMaximum Boost Pressure: 60Maximum Horsepower: 1150Pipe Color: BlackPipe Finish: Powder CoatedPipe Material: AluminumUniversal Or Specific Fit: SpecificSellingPoint01: Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks, ensuring superior durability and longevity compared to plastic stock tanksSellingPoint02: Includes billet fuel rail, lines, and precision-drilled ports for port injectionSellingPoint03: Includes PTFE -AN fuel lines that tee into stock fuel linesSellingPoint04: Robust bar-and-plate core for IATs as low as 11-degrees above ambientSellingPoint05: Improves flow to each cylinder by an average of 14-percentSellingPoint06: Improves cooling without increasing pressure drop over stockSellingPoint07: 33-percent core volume increase over stock with a 24-percent greater flow areaSellingPoint08: CFD-designed lower plenum for even flow distribution and safe fuelingSellingPoint09: Cast and CNC-machined runners accept stock O-rings or included fiber gasketSellingPoint10: Includes harness brackets, engine cover mount, and custom EVAP lines for seamless installSellingPoint11: Plenum cutout allows easy access to oil filter without impeding flowSellingPoint12: Includes two additional 1/8-NPT ports for manifold reference lines or sensorsSellingPoint13: Also fits X3 M/X4 M models with included EVAP plug and fittingSellingPoint14: Patent PendingSellingPoint15: Mishimoto Lifetime WarrantyTechSpec Applications: 2021+ BMW M3 I6 3.0L–2021+ BMW M4 I6 3.0L–2021+ BMW M3 Competition I6 3.0L–2021+ BMW M4 Competition I6 3.0L–2019+ BMW X3 M I6 3.0L–2019+ BMW X4 M I6 3.0L–2019+ BMW X3 M Competition I6 3.0L–2019+ BMW X4 M Competition I6 3.0LTechSpec Engine Codes: S58B30TechSpec Chassis Codes: G80–G82–G83–G87–F97–F98TechSpec Maximum Recommended Boost Pressure (PSI): 60
