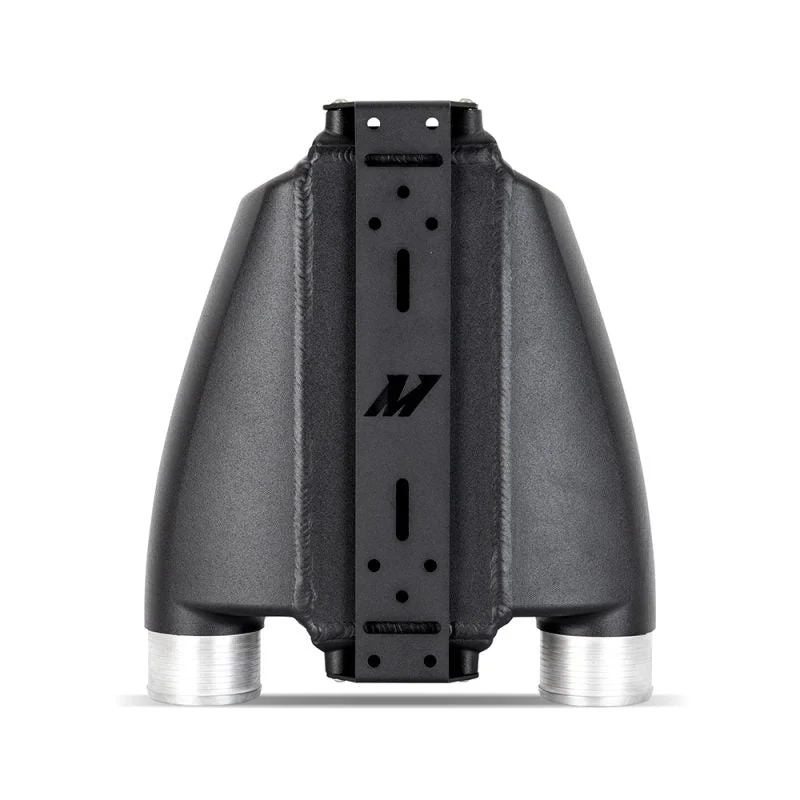

Mishimoto MMINT-A2W-DP-2 – Universal Air-To-Water Intercooler Dual Pass (1000hp) – Same Side Inlet/Outlet

Description

Mishimoto MMINT-A2W-DP-2 – Universal Air-To-Water Intercooler Dual Pass (1000hp) – Same Side Inlet/Outlet

Air-to-Water Intercooler, Dual-Pass Coolant, 1000HP-Same Side Inlet/Outlet

High-efficiency intercooler engineered to reduce intake air temperatures for improved power and engine performance. Durable construction ensures optimal heat exchange, consistent boost, and a precise, reliable fit.

Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers. Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower. When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping. Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -16ORB coolant ports into the core and providing a sturdy 1/8″ thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -16ORB Aluminum Fitting selection . Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat. As with all our products, these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty.

• Highly efficient air-to-water design delivers effective cooling in a compact package
• Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
• Cast-aluminum end tanks are custom engineered to yield superb airflow and durability

TechSpec Applications: N/ATechSpec Engine Codes: N/ATechSpec Chassis Codes: N/ATechSpec Maximum Recommended Boost Pressure (PSI): 100TechSpec Maximum Recommended Horsepower: 1000TechSpec Overall Length (in): 13.61TechSpec Overall Height (in): 10.75TechSpec Overall Width (in): 4.92TechSpec Core Type: Bar-and-PlateTechSpec Core Thickness (in): 4.92TechSpec Core Length (in): 12TechSpec Core Height (in): 4.92TechSpec Inlet (in): 3TechSpec Outlet (in): 3TechSpec Weight (lbs): N/ATechSpec Note: N/ATechSpec Includes: N/ATechSpec Installation Notes: N/ATechSpec Pipe Shape: N/ATechSpec Pipe Diameter: N/ATechSpec Pipe Length: N/ATechSpec Centerline Radius: N/ASellingPoint01: Highly efficient air-to-water design delivers effective cooling in a compact packageSellingPoint02: Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hpSellingPoint03: Cast-aluminum end tanks are custom engineered to yield superb airflow and durabilitySellingPoint04: Available in multiple core sizes, end tank configurations, and single or dual pass coolant flowSellingPoint05: All-aluminum professionally TIG-welded construction rated to 100psi of boost pressureSellingPoint06: CNC-machined ribbed airflow inlet/outlet produces secure coupler connectionsSellingPoint07: Sleek, subtle, and durable micro-wrinkle black powder coat finishSellingPoint08: -12ORB coolant ports provide leak-free line connectionsSellingPoint09: Includes robust 1/8-in thick steel mounting bracket and hardwareSellingPoint10: Abundant coolant line options with Mishimoto’s -12ORB Aluminum FittingsSellingPoint11: Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setupSellingPoint12: Multiple core sizes to choose from to fit the needs of your projectSellingPoint13: Mishimoto Lifetime WarrantySellingPoint14: N/ASellingPoint15: N/AInstall Difficulty: N/AOptionLabel: 1000HP – Same Side Inlet/OutletCore Height: 4.92Core Length: 12Core Thickness: 4.92Height: 10.75Length: 13.61Width: 4.92Inlet Outside Diameter: 3Outlet Outside Diameter: 3Inlet Fitting Gender: MaleOutlet Fitting Gender: MaleInlet Tank Material: AluminumGrade Type: PerformanceUniversal Or Specific Fit: SpecificCore Material: AluminumCore Color: 1000HP – Same Side Inlet/OutletType: Bar-and-Plate
