Mishimoto MMBCC-CBTWO-XLBK – 2-Port Universal XL Baffled Catch Can – Black

Description

Mishimoto MMBCC-CBTWO-XLBK – 2-Port Universal XL Baffled Catch Can – Black

Baffled Oil Catch Can, Black, 2-Port, XL Compact

Engine oil catch can kit designed to capture oil vapors and prevent buildup in the intake system. Helps maintain efficiency, reduce carbon deposits, and improve performance with durable components and easy installation.

With years of oil catch can research and development, Mishimoto has created the most effective oil catch can on the market. The patent pending Mishimoto XL Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter increases air turbulence and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50-micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems.The Mishimoto XL Baffled Oil Catch Can features a 7.5 fluid ounce capacity for heavy blow-by collection or extending the servicing interval on any vehicle. The 100-percent billet, 6061 aluminum can features M16 x 1.5 threads at the inlet, outlet, and drain area and includes two black anodized, CNC-machined aluminum fittings to make installation effortless. Our catch can is also sealed with Viton(TM) O-Rings to ensure all captured blow-by stays inside of the can. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

• Separates oil particles from PCV/CCV air using 50 micron bronze filter
• 100-percent billet 6061 aluminum sealed can
• Defends intercooler, intake system, and essential components from oil blow-by

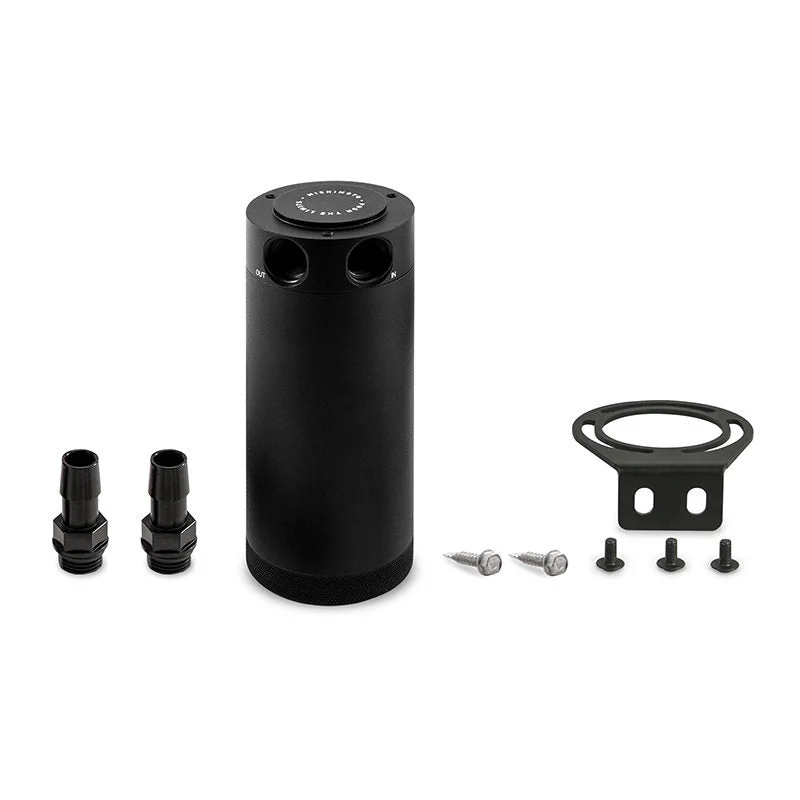

Color: N/ATechSpec Height (in): 6.25TechSpec Catch Can Diameter (in): 2.5TechSpec Inlet: M16x1.5TechSpec Outlet: M16x1.5TechSpec Drain Plug Thread Size: 3/8 NPTTechSpec Includes: (1) XL 2-Port Baffled Oil Catch Can–(2) aluminum 1/2-in Barbed Fittings–(1) Universal Mounting Bracket–(2) Self-Tapping Screws–Mishimoto Lifetime WarrantyTechSpec Applications: N/ATechSpec Engine Codes: N/ATechSpec Chassis Codes: N/ATechSpec Material: 6061 aluminumTechSpec Installation Notes: 6.25TechSpec Note: 2.5SellingPoint01: Separates oil particles from PCV/CCV air using 50 micron bronze filterSellingPoint02: 100-percent billet 6061 aluminum sealed canSellingPoint03: Defends intercooler, intake system, and essential components from oil blow-bySellingPoint04: Helps maintain proper octane levels to reduce potential detonationSellingPoint05: Features one inlet and one outletSellingPoint06: Filter and can are both fully serviceableSellingPoint07: Safe for pressurized applicationsSellingPoint08: Internal air diverter increases air turbulence to improve oil separationSellingPoint09: Includes 2 aluminum barbed 1/2-in hose fittingsSellingPoint10: Universal mounting bracket for different configurationsSellingPoint11: Patent Nos. US ZL 201830621732.1, US D884,760SellingPoint12: Mishimoto Lifetime WarrantySellingPoint13: N/ASellingPoint14: N/ASellingPoint15: N/AInstall Difficulty: 2Can Finish: AnodizedCan Material: 6061-T6 Billet AluminumCan Outside Diameter: 2.5Can Type: Twist OffColor: BlackDrain Plug Included: YesFinish: AnodizedHeight: 6.2Hose Included: YesInlet Port Inside Diameter: 0.6Inlet Port Quantity per Can: 1Interior Baffle: YesMaximum Can Capacity: 7.5Mounting Bracket Included: YesOutlet Port Inside Diameter: 0.6Outlet Port Quantity per Can: 1
