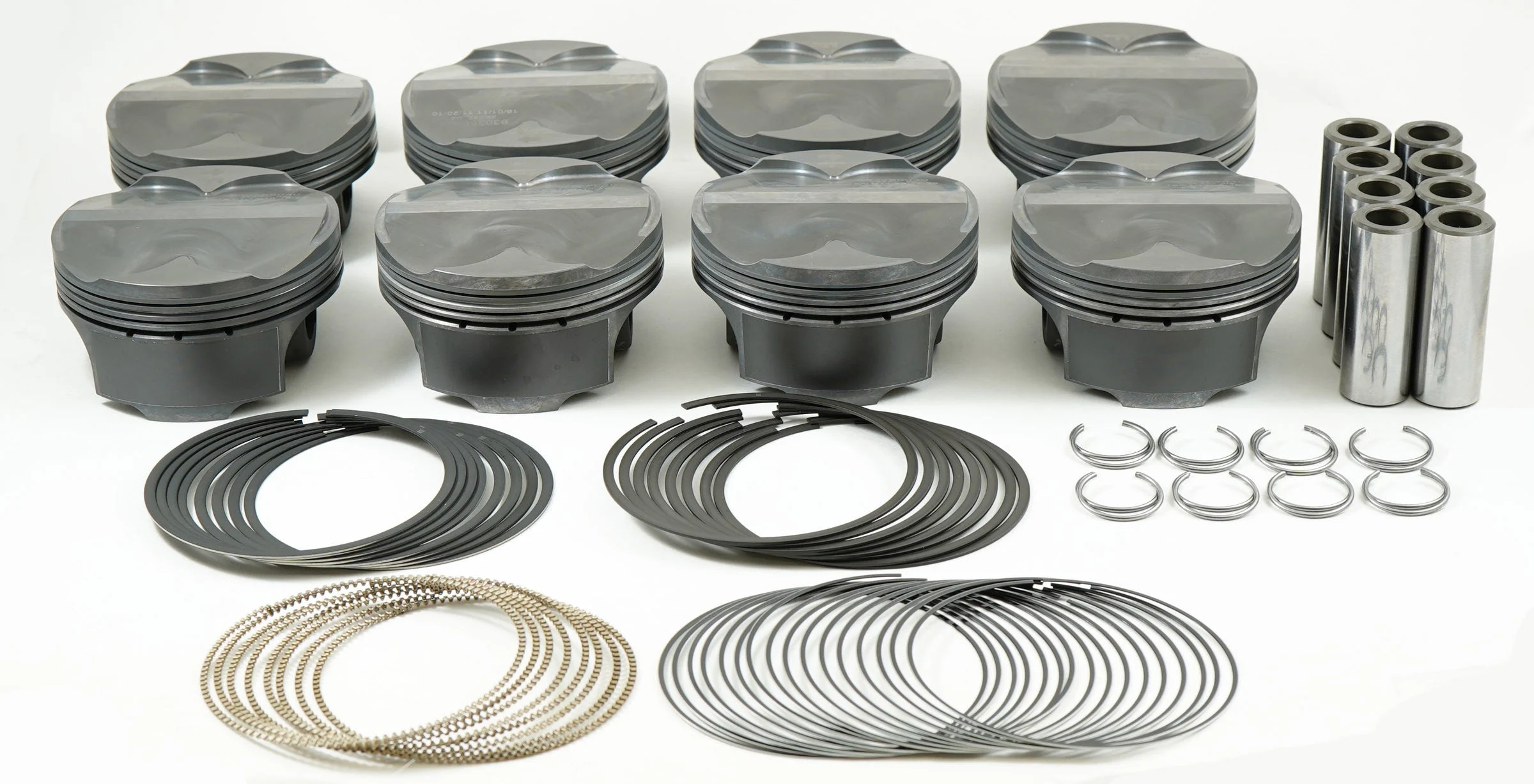

Mahle Motorsport 930258030 – Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.2 CR Set of 8

Description

Mahle Motorsport 930258030 – Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.2 CR Set of 8

Piston (set) – FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO

302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,3.0cc,389g,11.2CR, M142P

OCR Thickness: 2.0mmPiston Style: Dome, w/ 4 valve reliefsPiston Ring Thickness: 1.0mm, 1.0mm, 2.0mmPiston Material: Forged, M142PPiston Mass: 389gPins Included: YPin Wall Thickness: 0.177Pin Style: FloatingPin Material: SteelPin Mass: 118gPin Length: 61.1mmPin Diameter: 22.0mmPackage Quantity: Sold as a set of 8OCR Tension: StandardOCR Material: Chrome plated stainless steelLCR Thickness: 1.0mmLCR Material: 9254 SteelLCR Coating: PhosphateFile Fit: YCrown Volume: 3.0ccClips Included: YClip Style: Round WireUCR Thickness: 1.0mmUCR Material: 9254 SteelUCR Coating: HV385Rings Included: Y
