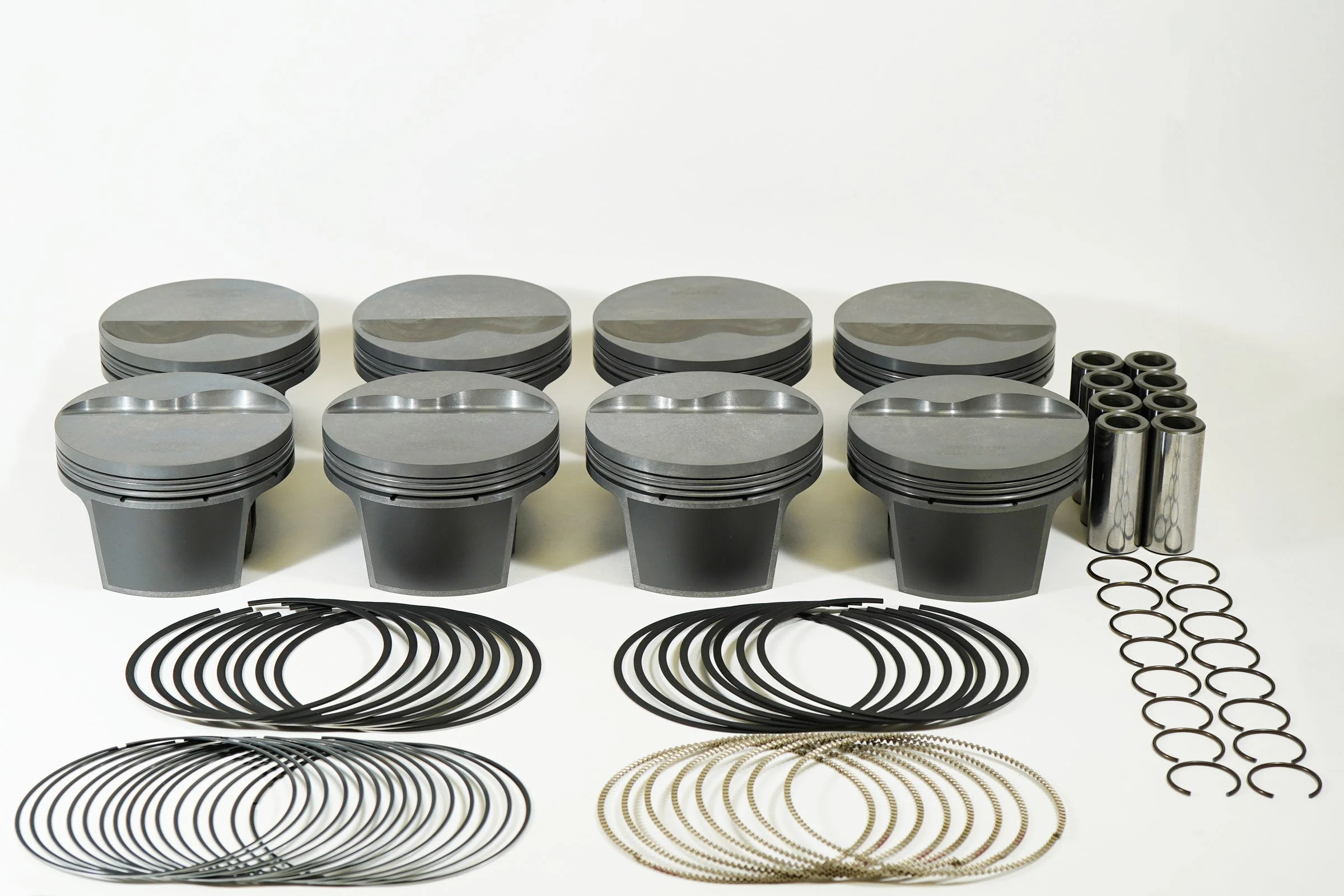

Mahle Motorsport 930244130 – Mahle MS Piston Set SBF 306ci 4.030in Bore 3in Stroke 5.09in Rod .912 Pin -6cc 8.9 CR Set of 8

Description

Mahle Motorsport 930244130 – Mahle MS Piston Set SBF 306ci 4.030in Bore 3in Stroke 5.09in Rod .912 Pin -6cc 8.9 CR Set of 8

Piston and Ring – PowerPak – Forged – Flat Top – 4.030 in Bore – 1.600 in Compression Height – 1.0 x 1.0 x 2.0 mm Ring Groove – Minus 6.50 cc – Small Block Ford – Kit

306cid 4.030 x 1.600CH, 3.000stroke,5.090rod,0.912pin,-6.5cc,469g,9.0CR, 4032

Clip Style: Round WirePin Wall Thickness: 0.171UCR Material: 9254 SteelUCR Coating: HV385Rings Included: YPiston Style: Flattop, w/ 2 valve reliefsPiston Ring Thickness: 1.0mm, 1.0mm, 2.0mmPiston Material: Forged, 4032Piston Mass: 469gPins Included: YPin Style: FloatingClips Included: YPin Material: SteelPin Mass: 116gPin Length: 58.1mmPin Diameter: 23.165mmPackage Quantity: Sold as a set of 8OCR Thickness: 2.0mmOCR Tension: StandardOCR Material: Chrome plated stainless steelLCR Thickness: 1.0mmLCR Material: 9254 SteelLCR Coating: PhosphateFile Fit: YCrown Volume: -6.5ccUCR Thickness: 1.0mm
