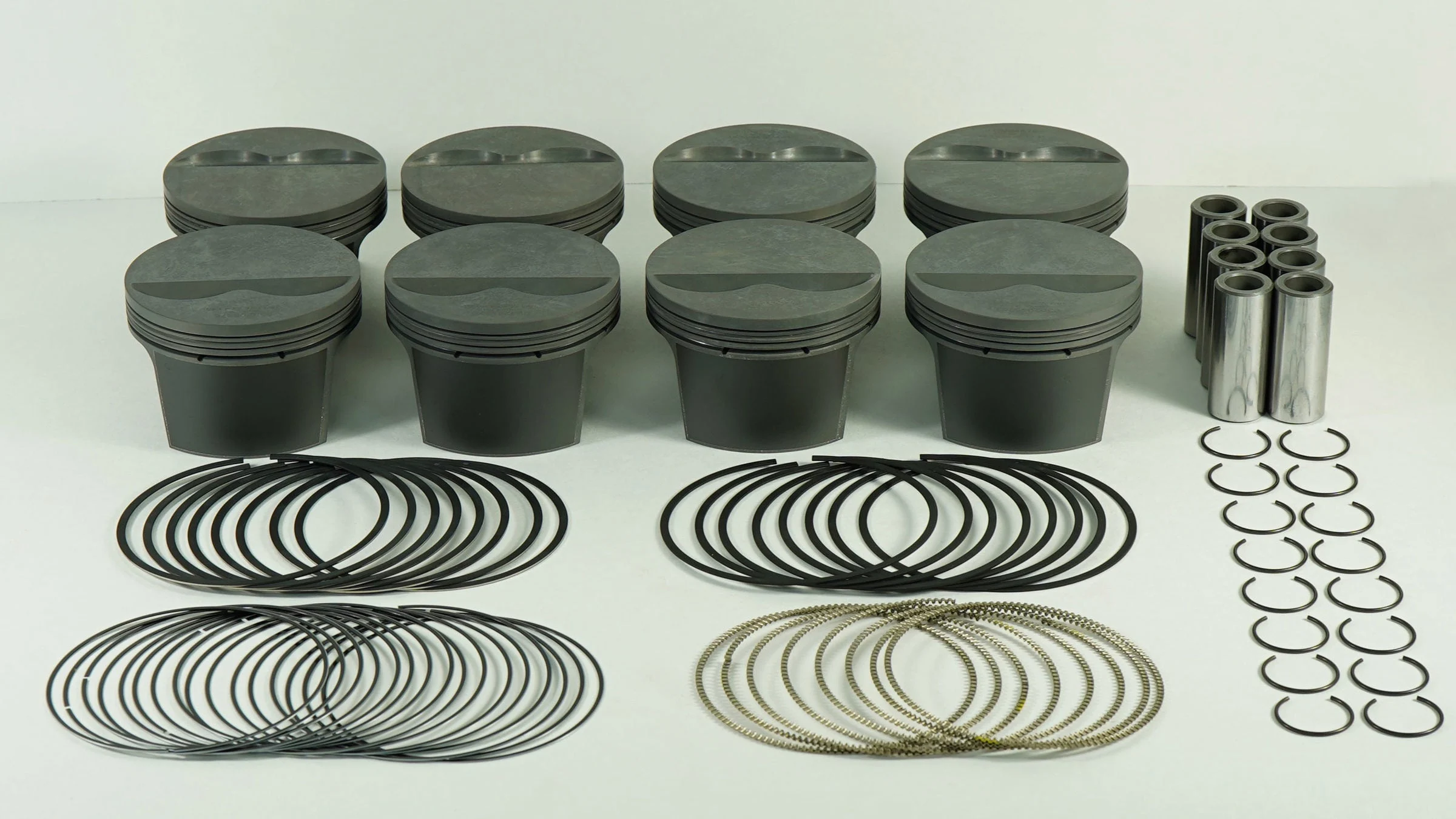

Mahle Motorsport 930204596 – Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.7 CR Set of 8

Description

Mahle Motorsport 930204596 – Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.7 CR Set of 8

Piston and Ring – PowerPak – Forged – Flat Top – 3.796 in Bore – 1.550 in Compression Height – 1.0 x 1.0 x 2.0 mm Ring Groove – Minus 3.00 cc – Small Block Chevy – Kit

315cid 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-3.0cc,417g,9.7CR, 4032

Clip Style: Round WirePin Wall Thickness: 0.168UCR Material: 9254 SteelUCR Coating: HV385Rings Included: YPiston Style: Flattop, w/ 2 valve reliefsPiston Ring Thickness: 1.0mm, 1.0mm, 2.0mmPiston Material: Forged, 4032Piston Mass: 417gPins Included: YPin Style: FloatingClips Included: YPin Material: SteelPin Mass: 118gPin Length: 58.1mmPin Diameter: 23.55mmPackage Quantity: Sold as a set of 8OCR Thickness: 2.0mmOCR Tension: StandardOCR Material: Chrome plated stainless steelLCR Thickness: 1.0mmLCR Material: 9254 SteelLCR Coating: PhosphateFile Fit: YCrown Volume: -3.0ccUCR Thickness: 1.0mm
