JE Pistons JG7708-4155-5 – Ring Sets – 043-043-3.0-105.664

Description

JE Pistons JG7708-4155-5 – Ring Sets – 043-043-3.0-105.664

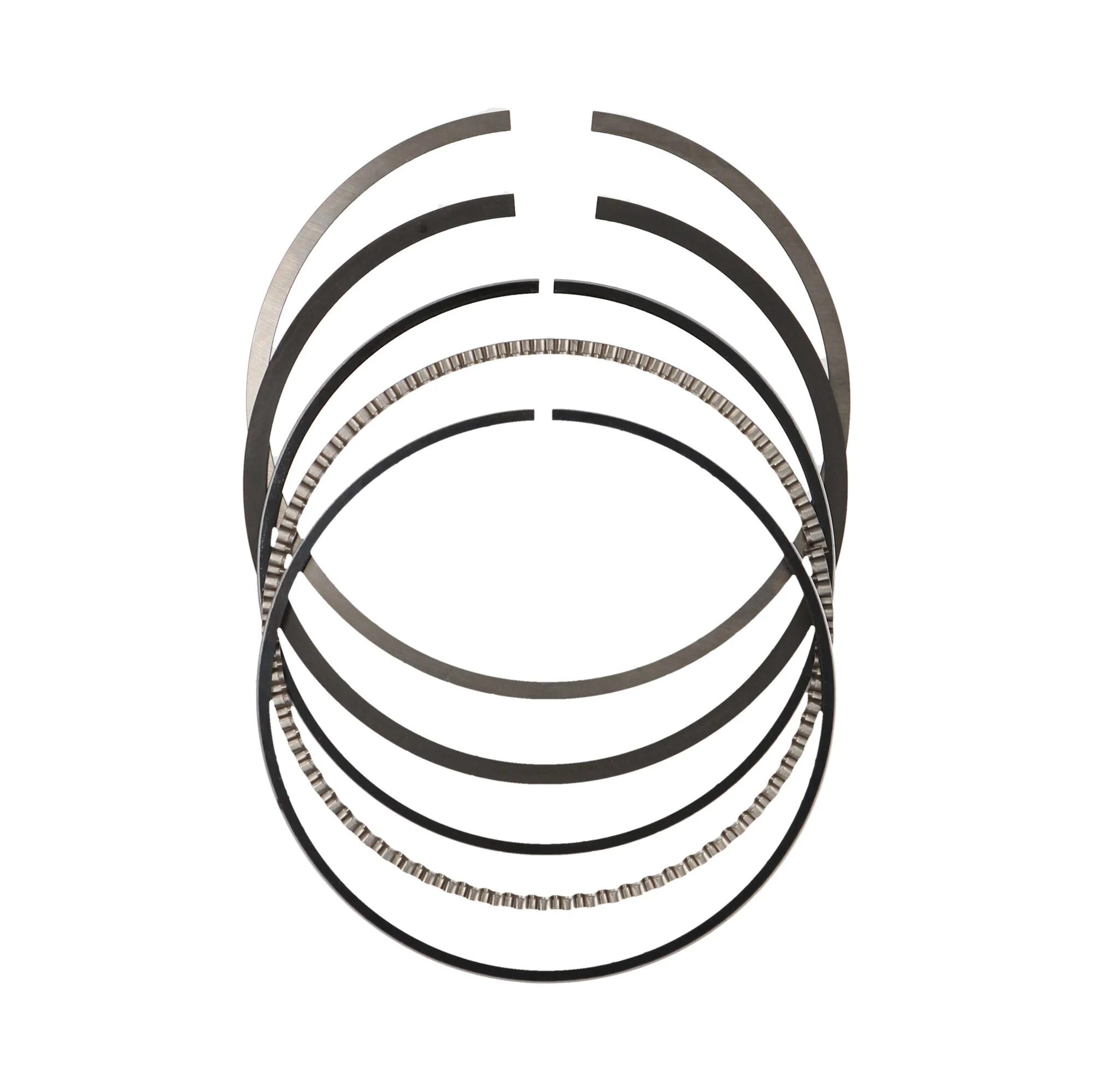

Piston Rings – Premium Race Series – 4.155 in Bore – File Fit – 0.043 in x 0.043 in x 3.0 mm Thick – Low Tension – Steel – Nitride – 8-Cylinder – Kit

Piston Ring Set, 8 Cyl., File Fit, 0.043 in. Carbon Steel Nitride Top Ring, 0.043 in. Ductile Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Highest quality ductile iron top ring with plasma-moly inlay
• Taper faced reverse torsional second rings
• combined with standard or low tension oil rings

Second Compression Ring Thickness: 0.0430Second Ring Facing Material: PhosphateSecond Ring Material: Ductile IronSecond Ring Shape: Napier, Back Cut, NeutralOil Ring Axial Height: 3.00Oil Ring Radial Width: 0.152Oil Ring Thickness: 0.118Third Ring Facing Material: Carbon SteelThird Ring Material: Carbon SteelThird Ring Shape: Full Seal, Flex VentRing Set Thickness: 0.0430 in. Top x 0.0430 in. 2nd x 0.118 in. OilProduct Type: Engine Piston Ring SetIndustry: AutomotiveCategory Hierarchy: Auto>Accessories>RingsOut of Stock Message: Call for AvailabilityTitle – Web: Piston Ring Set – 4.155 in. Bore – 0.0430 in. Top / 0.0430 in. 2nd / 0.118 in. Oil – 8 Cyl.Bore Diameter – Web: 4.155 IN / 105.54 MMEngine Type: ICEEBAY Category ID: 33623Bore Diameter: 4.155Ring Type: 3 RingFile Fit: YesTop Ring Axial Height: 0.043Top Ring Radial Width: 0.158Top Compression Ring Thickness: 0.0430Top Ring Facing Material: NitrideTop Ring Material: Carbon SteelTop Ring Shape: Barrel Face, Back Cut, TorsionalSecond Ring Axial Height: 0.043Second Ring Radial Width: 0.170
