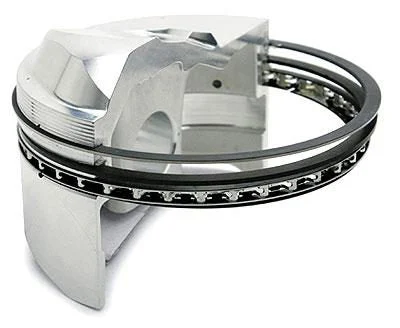

JE Pistons J10008-4310-5 – Ring Sets 1/16-1/16-3/16 RING

Description

JE Pistons J10008-4310-5 – Ring Sets 1/16-1/16-3/16 RING

Piston Rings – Premium Race Series – 4.310 in Bore – File Fit – 1/16 x 1/16 x 3/16 in Thick – Low Tension – Ductile Iron – Plasma Moly – 8-Cylinder – Kit

Piston Ring Set, 8 Cyl., File Fit, 0.064 in. Ductile Iron Plasmy Moly Top Ring, 0.064 in. Iron Phosphate Second Ring, 0.188 in. Carbon Steel Chrome Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Highest quality ductile iron top ring with plasma-moly inlay
• Taper faced reverse torsional second rings
• combined with standard or low tension oil rings

Out of Stock Message: Call for AvailabilityTitle – Web: Piston Ring Set – 4.310 in. Bore – 0.0640 in. Top / 0.0640 in. 2nd / 0.188 in. Oil – 8 Cyl.Bore Diameter – Web: 4.310 IN / 109.47 MMEngine Type: ICEEBAY Category ID: 33623Bore Diameter: 4.310Ring Type: 3 RingFile Fit: YesTop Ring Axial Height: 1/16Top Ring Radial Width: 0.198Top Compression Ring Thickness: 0.0640Top Ring Facing Material: Plasma MolyTop Ring Material: Ductile IronTop Ring Shape: Barrel Face, D-wall, TorsionalSecond Ring Axial Height: 1/16Second Ring Radial Width: 0.198Second Compression Ring Thickness: 0.0640Second Ring Facing Material: PhosphateSecond Ring Material: IronSecond Ring Shape: Taper Face, D-wall, Reverse TorsionalOil Ring Axial Height: 3/16Oil Ring Radial Width: 0.150Oil Ring Thickness: 0.188Third Ring Facing Material: Carbon SteelThird Ring Material: Carbon SteelThird Ring Shape: Full Seal, Flex VentRing Set Thickness: 0.0640 in. Top x 0.0640 in. 2nd x 0.188 in. OilProduct Type: Engine Piston Ring SetIndustry: AutomotiveCategory Hierarchy: Auto>Accessories>Rings
