Icon K83201 – 22-25 Nissan Frontier 1-3in Stage 1 Lift Kit

Description

Icon K83201 – 22-25 Nissan Frontier 1-3in Stage 1 Lift Kit

22-25 NISSAN FRONTIER 1-3″ LIFT STAGE 1 SUSPENSION SYSTEM

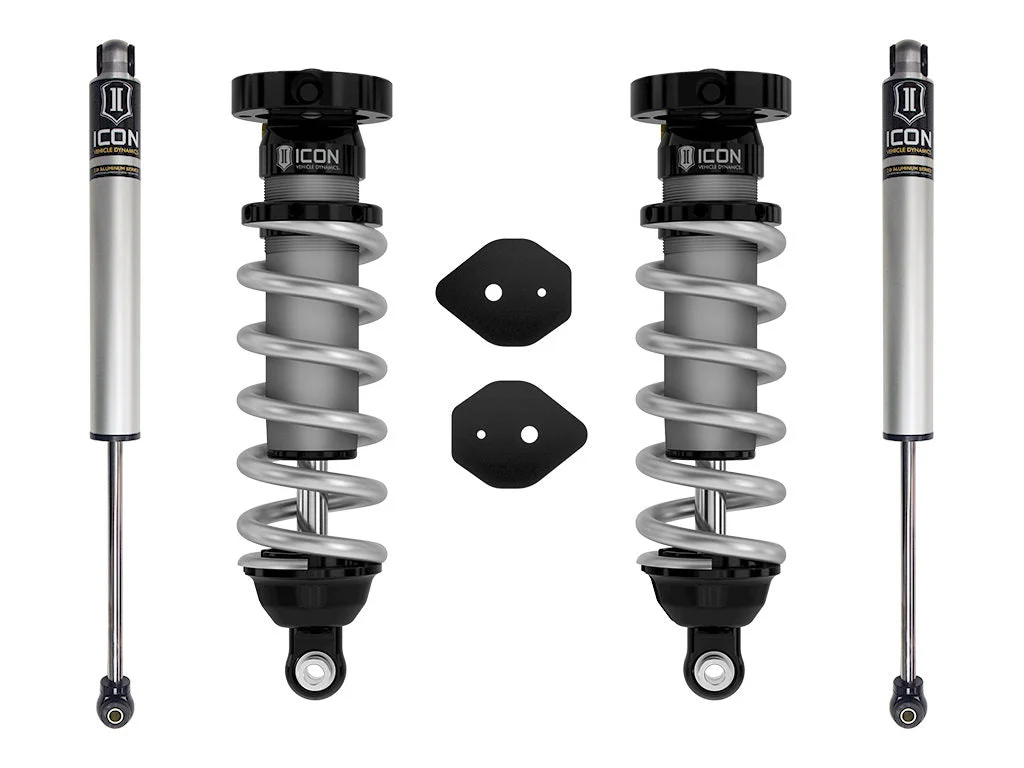

ICON Vehicle Dynamics 2022-2025 Nissan Frontier suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2022-2025 Nissan Frontier Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Adjustable 2.5 Series coilovers provide 1-3″ front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• FK Rod End bearings for extended longevity and minimal deflection
• CNC laser cut front bump stop spacers
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8″ shafts

Coil Quantity Front: 2Coil Spring Color: SilverCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoils Quantity Front: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Minimum Lift Front: 1Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Wheels: 17×8.5 with 6.32” Backspace / 40mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.6” Backspace / 40mm OffsetShocks Included: YesSpring Color: SilverSpring Material: SteelActive or Passive Suspension: PassiveAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Adjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: Yes
