Icon K53195T – 2022+ Toyota Tundra 2-3.5in Stage 5 3.0 Suspension System (TUBULAR)

Description

Icon K53195T – 2022+ Toyota Tundra 2-3.5in Stage 5 3.0 Suspension System (TUBULAR)

22-25 TUNDRA 2-3.5″ STAGE 5 SUSPENSION SYSTEM TUBULAR

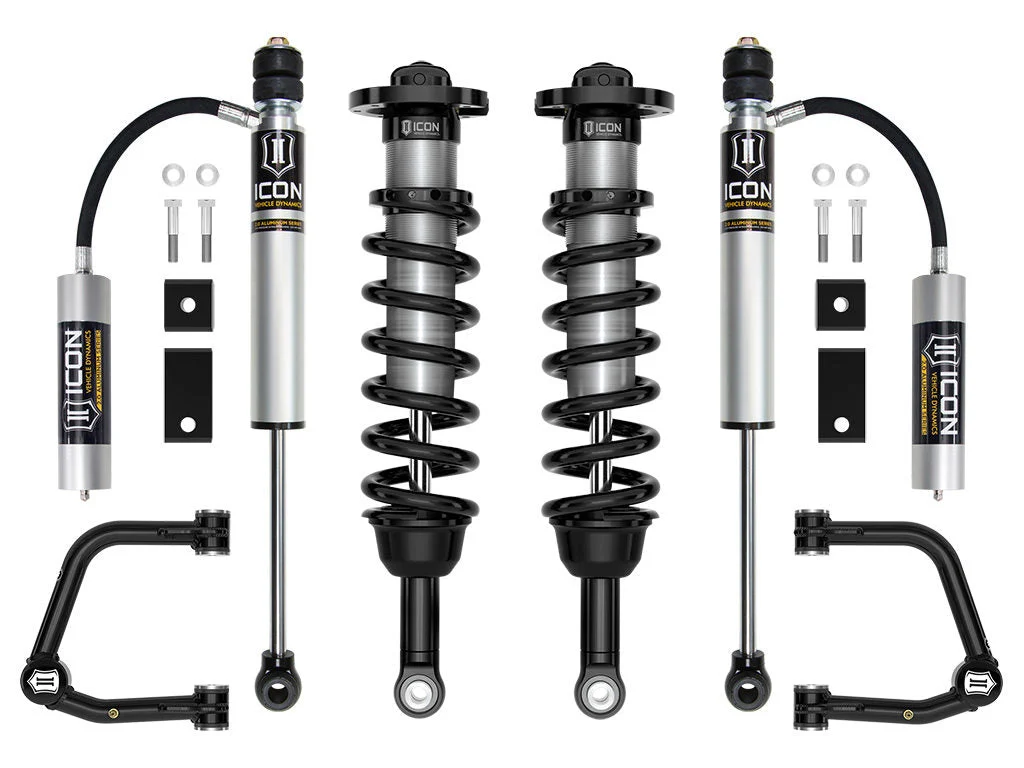

Stage 5 includes 2.5 Series coilovers for 1.25-3.5” of front lift, greater performance, and 35” tire fitment. Tubular UCAs provide alignment correction and 2.0 Series remote reservoir rear shocks balance the tuning from front to rear.

Rounding out the Stage 5 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

• Vehicle specific design for 2022-2025 Toyota Tundra
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 55156 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 DIFF DROP KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 55164 – 22-26 TUNDRA/23-25 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 56111 – 22-26 TUNDRA REAR HYD BUMP STOP KITAdd-On Part: 56112 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 REAR FOAM BUMP STOP KITAdd-On Part: 56113 – 22-26 TUNDRA/23-25 SEQUOIA FRONT FOAM BUMP STOP KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate: 700Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.5Maximum Lift Front: 3.5Maximum Lift Height Front: 3.5Minimum Lift Front: 2Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: 17×8.5″ w/ 5.75” Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
