Icon K53193 – 2022+ Toyota Tundra 1.5-2.25in Stage 3 Suspension System
22-25 TUNDRA 1.25-2.25″ STAGE 3 SUSPENSION SYSTEM

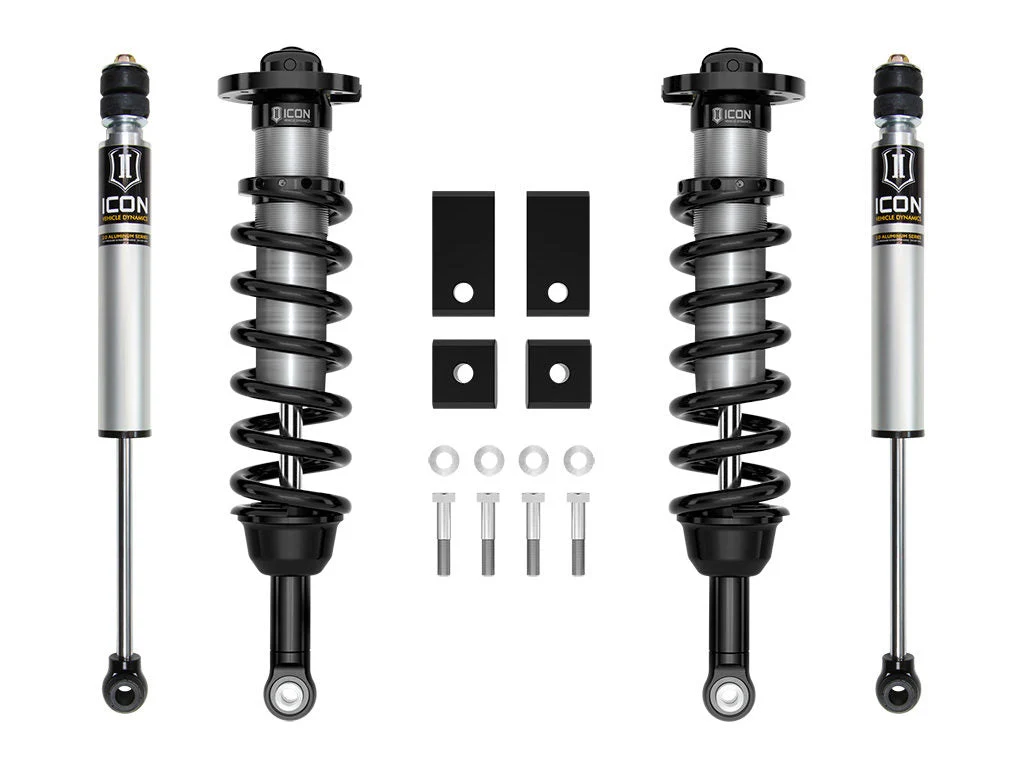

Stage 3 includes a pair of 2.5 Series coilovers for 1.25-2.25” of front lift, greater performance, and 35” tire fitment. Front sway bar brackets are also included and 2.0 Series rear shocks to balance the tuning from front to rear.
This Stage 3 system features the 2022-2025 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1.25-2.25” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 1.25-2.25” of front lift over stock when used with stock UCAs
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- 100% Bolt-on system – no drilling, cutting, or welding necessary for install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 55156 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 DIFF DROP KITAdd-On Part: 56112 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 REAR FOAM BUMP STOP KITAdd-On Part: 58461DJ – 22-26 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KITAdd-On Part: 55164 – 22-26 TUNDRA/23-25 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 58561DJ – 22-26 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KITAdd-On Part: 56113 – 22-26 TUNDRA/23-25 SEQUOIA FRONT FOAM BUMP STOP KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 56111 – 22-26 TUNDRA REAR HYD BUMP STOP KITAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 2.25Maximum Lift Front: 2.25Maximum Lift Height Front: 2.25Minimum Lift Front: .75Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: 17×8.5″ w/ 5.75” Backspace / 25mm OffsetReservoir Style: InternalShocks Included: YesSpring Color: BlackSpring Material: Steel
