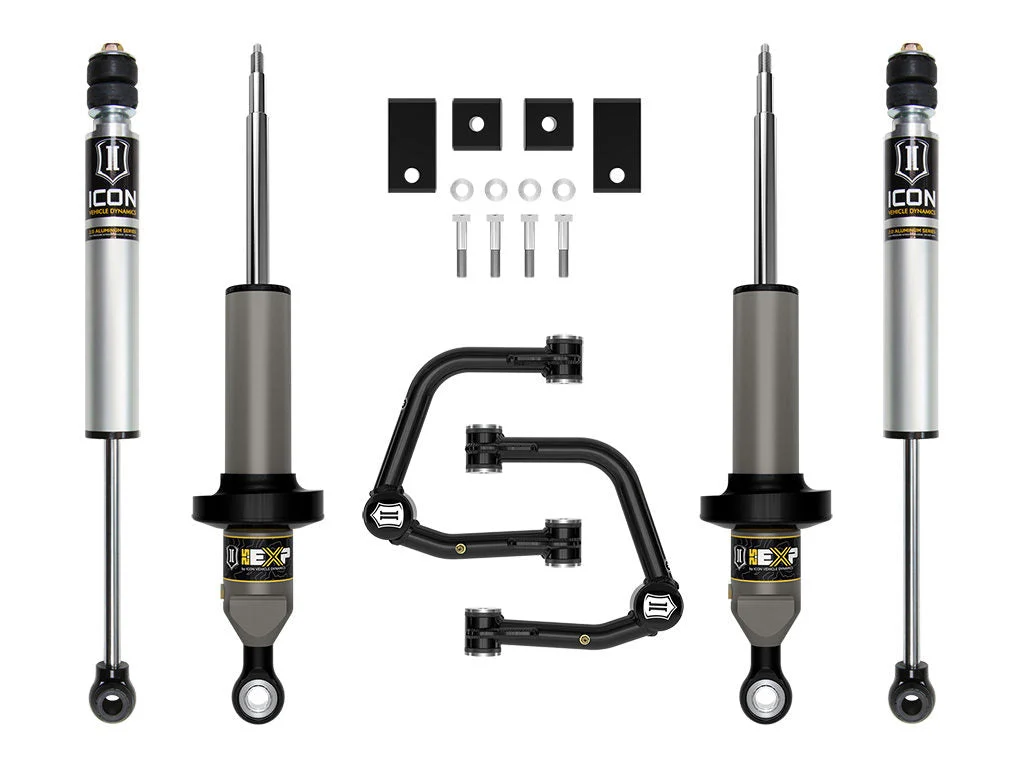

Icon K53192T – 2022+ Toyota Tundra 2-3in Stage 2 Tubular Suspension System
22-25 TUNDRA 2-3″ STAGE 2 SUSPENSION SYSTEM TUBULAR
Stage 2 includes a pair of 2.5 EXP Series coilovers for 2-3” of front lift, improved performance, and 35” tire fitment. Tubular UCAs for alignment correction are included with 2.0 Series rear shocks to balance the tuning from front to rear.
The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-2025 Toyota Tundra builds on ICON’s 2.5 EXP Shock Kit with the addition of tubular front upper control arms, providing proper alignment at taller ride heights, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35″ tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 2-3” of front lift over stock with the use of snap ring and included tubular UCAs
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- 100% Bolt-on system – no drilling, cutting, or welding necessary for install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 56111 – 22-26 TUNDRA REAR HYD BUMP STOP KITAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 56112 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 REAR FOAM BUMP STOP KITAdd-On Part: 55164 – 22-26 TUNDRA/23-25 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 56113 – 22-26 TUNDRA/23-25 SEQUOIA FRONT FOAM BUMP STOP KITAdd-On Part: 55156 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 DIFF DROP KITAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesFront Reservoir Style: InternalFront Shock Body Diameter: 2.5Grade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Minimum Lift Front: 2Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: 17×8.5″ w/ 5.75” Backspace / 25mm OffsetReservoir Style: InternalShocks Included: Yes
