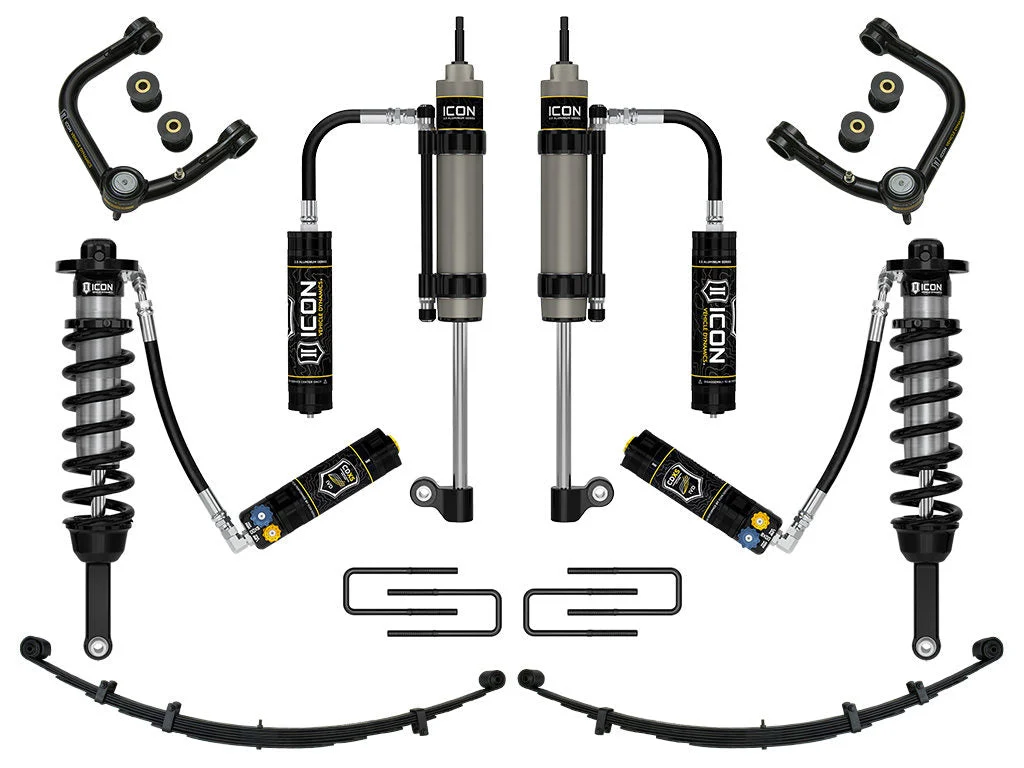

Icon K53010TD – 2005-2015 Toyota Tacoma 0-3.5″ Lift/2016-2023 Tacoma 0-2.75″ Lift, Stage 10 Suspension System, Tubular, CDXS

Description

Icon K53010TD – 2005-2015 Toyota Tacoma 0-3.5″ Lift/2016-2023 Tacoma 0-2.75″ Lift, Stage 10 Suspension System, Tubular, CDXS

05-15 TACOMA 0-3.5″/16-23 0-2.75″ STAGE 10 SUSPENSION SYSTEM TUBULAR CDXS

ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON’S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

This system features billet aluminum upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5″ of front lift height on 2005-2015 models and up to 2.75″ on 2016-2023 models
• Front coilovers are ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 2.5 Aluminum Series RXT Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 56103 – 05-23 TACOMA REAR HYD BUMP STOP KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 191011 – TUBULAR UCA BILLET CAP SETAdd-On Part: 51045 – TOYOTA .25” BUMP STOP SPACER KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 51051 – 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KITAdjustable Compression: YesAdjustable Control Arm: NoAdjustable Damping: YesAdjustable Rebound: Rear OnlyBushings Included: YesCoil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Front Damping Adjustment Type: Dual Speed/ManualFront Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate: 650Front Spring Rate Type: LinearGrade Type: PerformanceLeaf Spring Color: BlackLeaf Spring Leaf Quantity: 8Leaf Spring Material: SteelMaximum Lift: 3.5Maximum Lift Front: 3.5Maximum Lift Height Front: 3.5Maximum Lift Height Rear: 2.625Maximum Lift Rear: 2.625Minimum Lift Front: 0Minimum Lift Rear: 1.875Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Damping Adjustment Type: Bypass/ManualRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate Type: VariableRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 with 5” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
