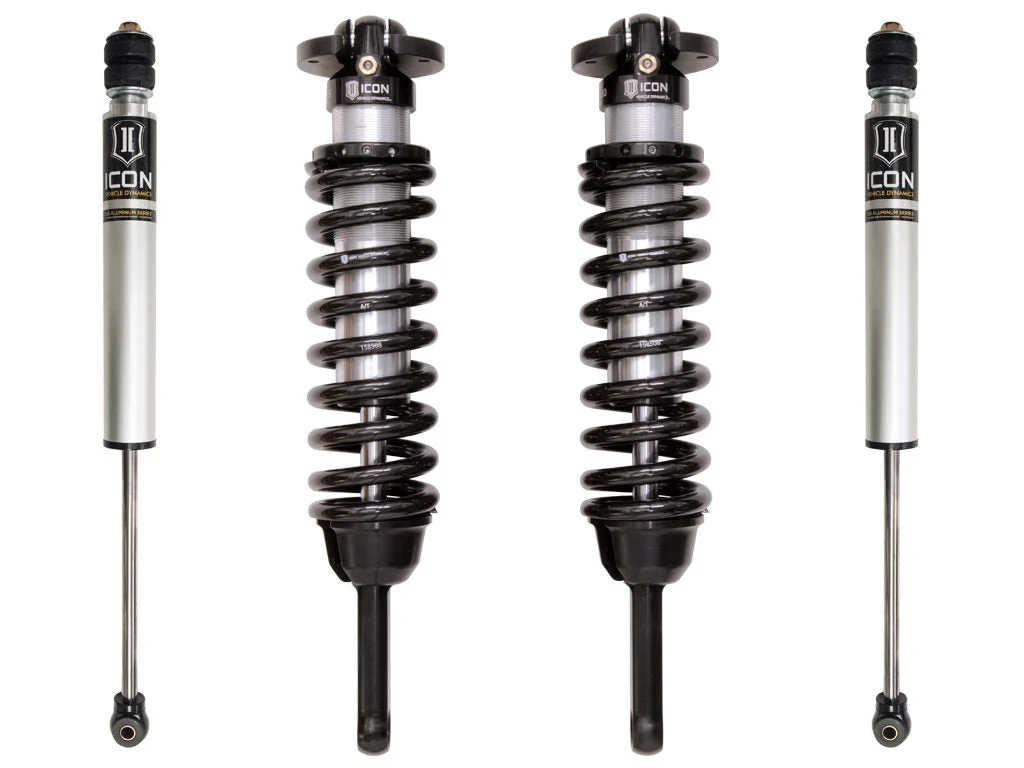

Icon K53001 – 05-15 Toyota Tacoma 0-3.5in / 2016+ Toyota Tacoma 0-2.75in Stage 1 Suspension System
05-15 TACOMA 0-3.5″/ 16-UP 0-2.75″ STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-UP models allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-UP Toyota Tacoma 4WD/PreRunner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide up to 3.5″ of front lift height on 2005-2015 models and up to 2.75″ on 2016-2023 models
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- ICON engineered coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear shocks with 5/8″ shaft
- Bolt-on system means no cutting or welding necessary for install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 51045 – TOYOTA .25” BUMP STOP SPACER KITAdd-On Part: 51051 – 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KITAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate: 650Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.5Maximum Lift Front: 3.5Maximum Lift Height Front: 3.5Minimum Lift Front: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: EmulsionRear Shock Body Diameter: 2Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
