Icon K40014T – 21-UP Ford Bronco SASQUATCH 2-3in LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

Description

Icon K40014T – 21-UP Ford Bronco SASQUATCH 2-3in LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

21-UP BRONCO SASQUATCH 2-3″ LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

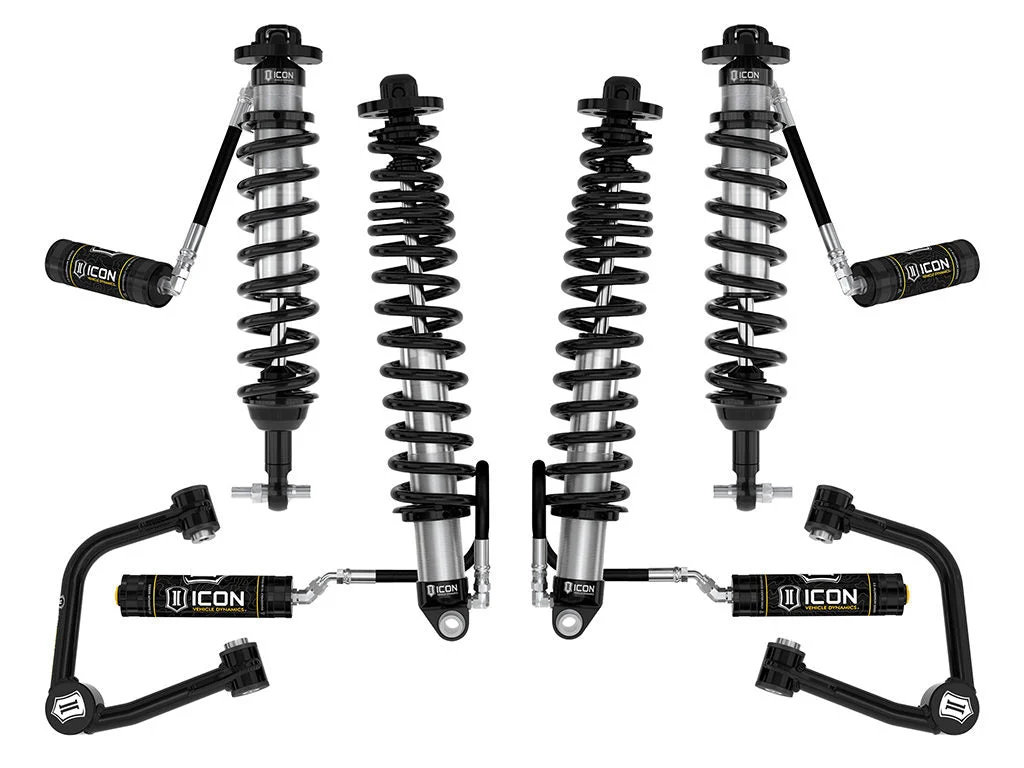

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. To provide for sustained shock performance at speed through rough terrain, Stage 4 adds remote reservoirs to the ICON Coilovers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 4 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11.5″ of front suspension travel and 14″ of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37″ and larger tires if using the optional up-travel limiters (sold separately).

• Improved suspension performance and ride quality over stock
• Up to 11.5″ front / 14” rear wheel travel with 35” tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Adjustable coilovers yield up to 2-3″ of front lift height and 1.25-2.25” of rear lift height over stock 4-door Sasquatch package equipped Broncos
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 44200T – 21-26 BRONCO REAR ADJ TRACK BAR KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 611074 – C/O BUMP STOP SPACER KIT 7/8″ SHAFT 3/8″ TALLAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 45212 – 21-26 BRONCO XD TIE ROD KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 611072 – 21-26 BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9″Add-On Part: 611075 – C/O BUMP STOP SPACER KIT 7/8″ SHAFT 1/2″ TALLAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: SquareCoil Spring End 2 Type: SquareCoil Spring Material: SteelCoils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Maximum Lift Height Rear: 2.75Maximum Lift Rear: 2.25Minimum Lift Front: 2Minimum Lift Rear: 1.25Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate Type: Progressive Triple RateRecommended Aftermarket Tires: 35″ x 12.50″ (37″ tires require coilover bump stop spacers along with minor trimming)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” BS / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
