Icon K40004T – 21-UP BRONCO NON-SASQUATCH 3-4″ LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

Description

Icon K40004T – 21-UP BRONCO NON-SASQUATCH 3-4″ LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

21-23 BRONCO NON-SASQUATCH 3-4″ LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

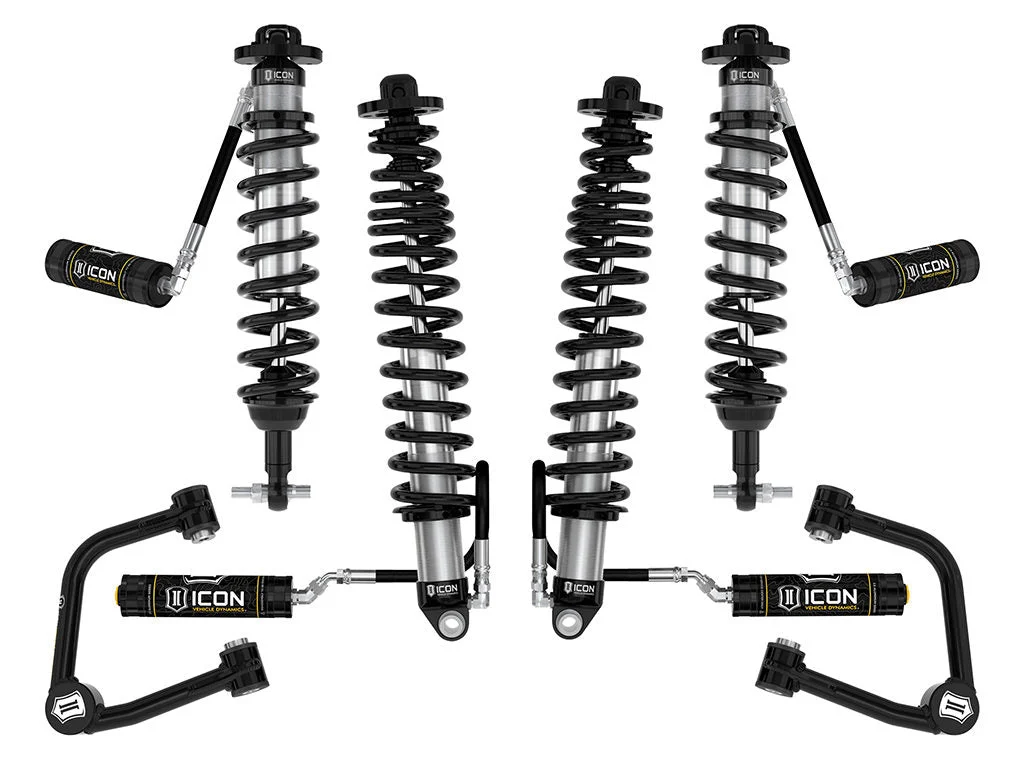

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. To provide for sustained shock performance at speed through rough terrain, Stage 4 adds remote reservoirs to the ICON Coilovers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 4 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11.5″ of front suspension travel and 14″ of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37″ and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35″ and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.

• Improved suspension performance and ride quality over stock
• Up to 11.5″ front / 14” rear wheel travel with 35” tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Adjustable coilovers yield up to 3-4″ of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 611075 – C/O BUMP STOP SPACER KIT 7/8″ SHAFT 1/2″ TALLAdd-On Part: 44200T – 21-26 BRONCO REAR ADJ TRACK BAR KITAdd-On Part: 611074 – C/O BUMP STOP SPACER KIT 7/8″ SHAFT 3/8″ TALLAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 611072 – 21-26 BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9″Add-On Part: 42000 – 21-25 BRONCO HIGH CLEARANCE CRASH BAR KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 45212 – 21-26 BRONCO XD TIE ROD KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Spring Color: BlackCoil Spring End 1 Type: SquareCoil Spring End 2 Type: SquareCoil Spring Material: SteelCoils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 4Maximum Lift Front: 4Maximum Lift Height Front: 4Maximum Lift Height Rear: 3.5Maximum Lift Rear: 3Minimum Lift Front: 3Minimum Lift Rear: 2Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate Type: Progressive Triple RateRecommended Aftermarket Tires: 35″ x 12.50″ (Recommend high clearance crash bars part number 42000, 37″ tires require coilover bump stop spacers along with trimming and modifications)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00″ Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
