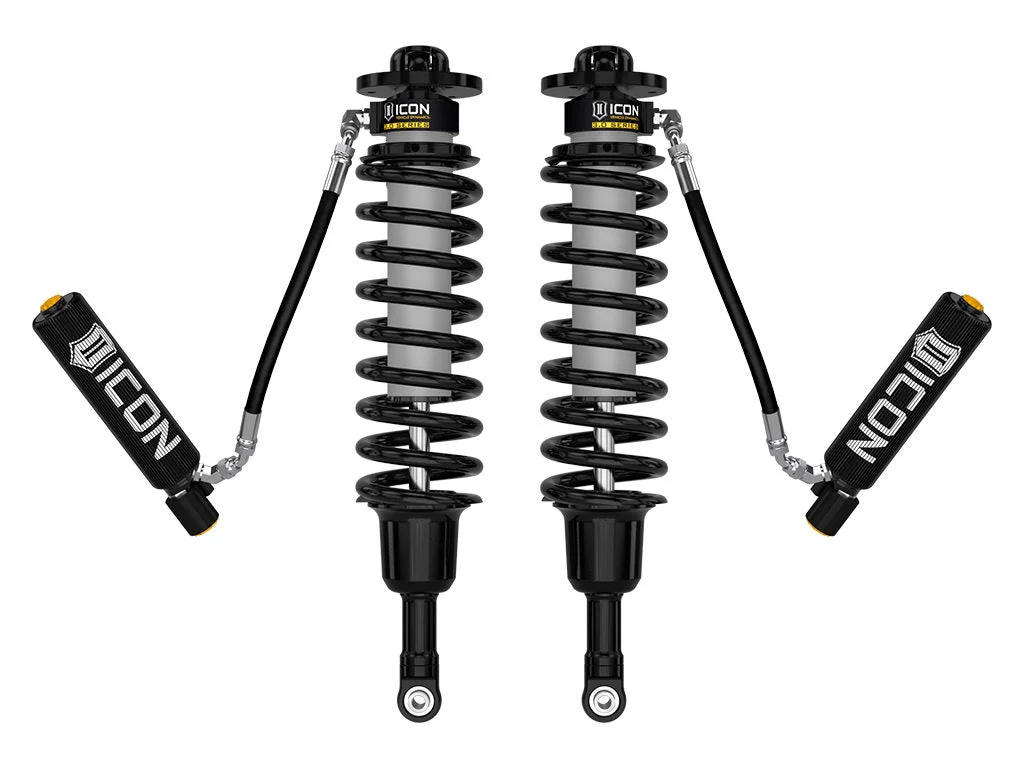

Icon 95003 – 21-24 Ford F-150 Raptor Front 3.0 VS RR Coilover Kit w/ CDEV

Description

Icon 95003 – 21-24 Ford F-150 Raptor Front 3.0 VS RR Coilover Kit w/ CDEV

21-25 F-150 RAPTOR FRONT 3.0 VS RR CDEV COILOVER KIT

2017-2020 FORD RAPTOR FRONT 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT

ICON’s exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance and improve upon the functionality provided by the factory active shock system. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control (IIC) and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. With the shock absorbers no longer directly wired to the Raptor’s ECU the IIC/CDEV system also allows drivers to dial in their preferred shock damping settings independently from the selected vehicle drive mode and with more refined resolution than afforded by the factory system. This allows for a more customized vehicle set up with the perfect blend of comfort and performance.

• Adjustable coilovers yield 1-3” of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• ICON’s Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Superior low speed control reduces body roll and increases on-road stability
• ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• 10″ finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Barreled coil spring design maximizes travel and provides more efficient packaging
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Heavy duty CNC machined 1” shock shafts
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• Cerakoted shock body with hard anodized piston and top cap
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 95206L – 21-25 F-150 RAPTOR DRIVER REAR 3.0 ZETA RXT RR CDEVAdd-On Part: 611077 – C/O BUMP SPACER KIT, 1″ SHAFT, 5/8″ TALLAdd-On Part: 611078 – C/O BUMP SPACER KIT, 1″ SHAFT, 7/8″ TALLAdd-On Part: 95206R – 21-25 F-150 RAPTOR PASSENGER REAR 3.0 ZETA RXT RR CDEVAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 95020 – 21-25 F-150 RAPTOR SOLENOID MOUNT KITAdd-On Part: 93500 – 15-25 F150 & 17-22 FSD IIC INSTALL KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 3Coil Over Springs Included: YesCompressed Length: 21.16Cylinder Color: GrayCylinder Finish: Ceramic CoatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield: NoDust Shield Included: NoExtended Length: 29.39Front Spring Rate: 500Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaterial: AluminumMaterial: SteelMaximum Lift: 3Maximum Ride Height Raising Distance: 3Minimum Lift: .75OEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35 x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf-Leveling: NoService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Shaft Diameter: 1Shock Absorber Body End Measuring Point: Top of Upper Mount PlateShock Absorber Rod End Measuring Point: Center of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 8.27Upper Mount Type: Mounting PlateValving Type: Rebound: DigressiveValving Type: Compression: Linear
