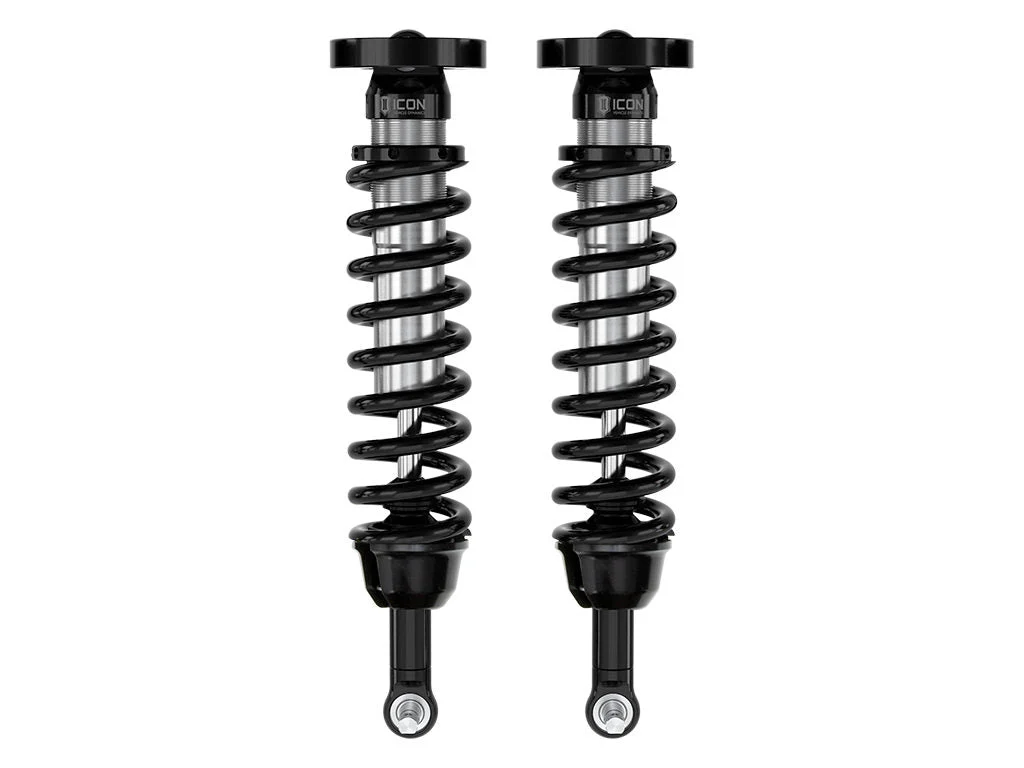

Icon 71610 – 21-24 Chevrolet Tahoe 3-4in Lift Rear V.S. 2.5 Series Coilover Kit Internal Reservoir

Description

Icon 71610 – 21-24 Chevrolet Tahoe 3-4in Lift Rear V.S. 2.5 Series Coilover Kit Internal Reservoir

21-23 GM SUV REAR 2.5 VS IR COILOVER KIT

ICON’s 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the rear end of 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total rear wheel travel compared to stock, improving suspension performance and ride quality. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 3-4” of rear lift height adjustability on Tahoe and Yukon or 2.5-3.5″ of rear lift on Suburban or Yukon XL, allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON front 2.5 Series coilover shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM SUV.

• Increased rear wheel travel and improved ride quality over stock
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• Adjustable coilovers yield 3-4” or 2.5-3.5″ of rear lift height over stock, depending on vehicle
• Internal nitrogen reservoir ensures consistent performance under hard use
• ICON engineered coil springs
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• 7/8″ diameter hardened chrome plated shafts
• 6061 Aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings for extended longevity and minimal deflection

Shock Absorber Rod End Measuring Point: Center of EyeletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 7.09Upper Mount Type: Mounting PlateValving Type: DigressiveActive or Passive Suspension: PassiveAdd-On Part: 71022 – 21-23 GM RIDE HEIGHT SIMULATORAdd-On Part: 71021 – 19-23 GM ELECTRONIC SHOCK SIMULATORAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 71020 – 21-23 GM SUV TOE LINK KITAdjustable Compression: NoAdjustable Damping: NOAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5Coil Over Springs Included: YesCompressed Length: 18.59Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 25.68Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaterial: SteelMaterial: AluminumMaximum Lift: 4Maximum Ride Height Raising Distance: 4Minimum Lift: 2.5OEM Wheels & Tires Fitment: YesRear Spring Rate: 400Recommended Aftermarket Tires: 33″x12.50″ (Larger tires may fit but fender trimming and modifications may be required)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetRemote Reservoir: NOReservoir Style: InternalSelf-Leveling: NoService Parts: 252004 – ECONOMY NEEDLE CHARGING TOOLService Parts: 252010 – 2.5 IFP REBUILD KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 611019 – COILOVER HARDWARE KIT PAIRService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
