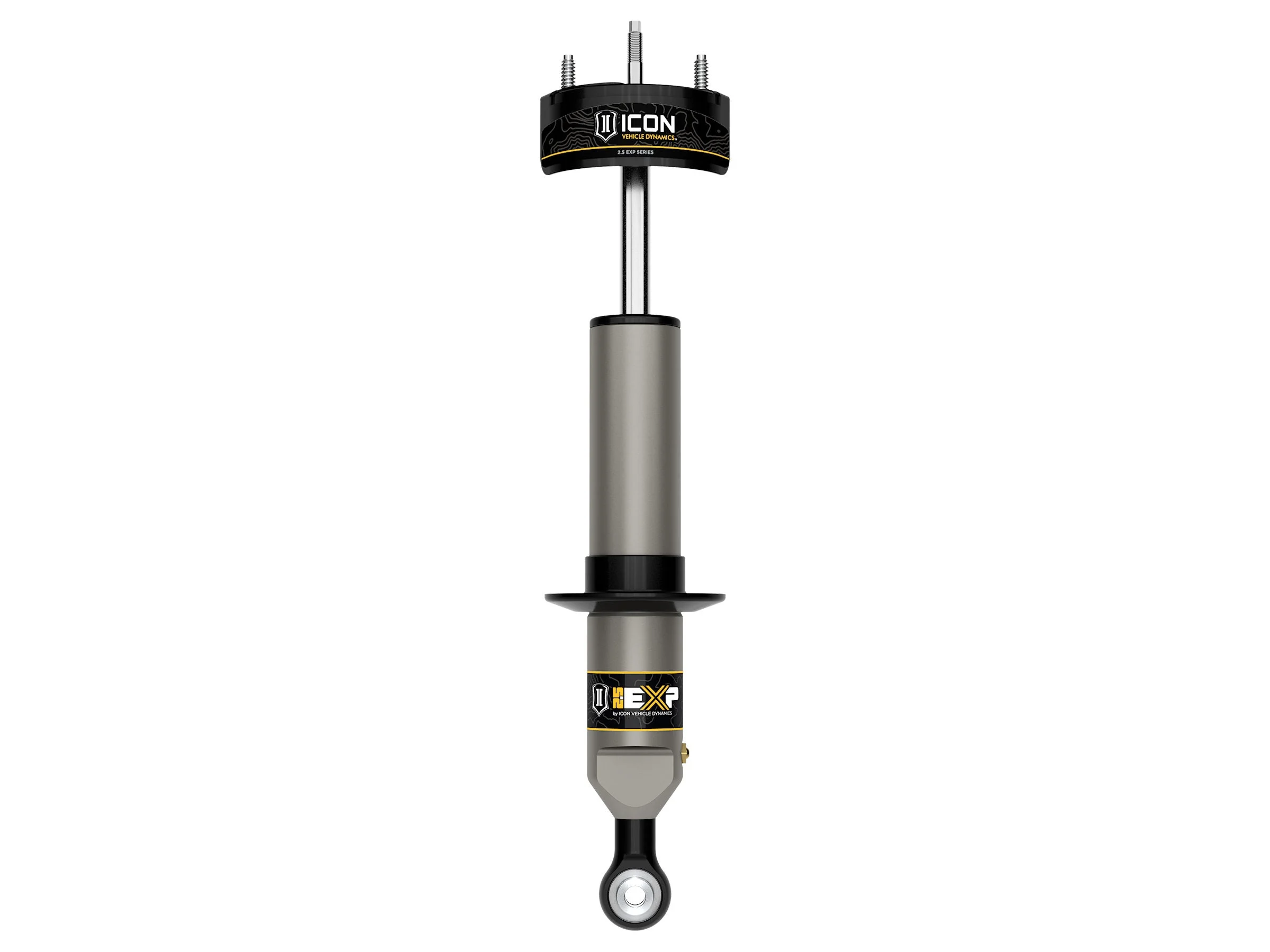

Icon 58632 – 2005+ Toyota Tacoma 2.5 EXP Front Coilover Shock

Description

Icon 58632 – 2005+ Toyota Tacoma 2.5 EXP Front Coilover Shock

05-23 TACOMA FRONT 2.5 EXP COILOVER

2005-UP TOYOTA TACOMA FRONT 2.5 EXP SERIES COILOVER

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

• Vehicle specific design for 2005-2023 Toyota Tacoma
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 51051 – 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KITAdd-On Part: 611030 – 05-23 TACO/07-09 FJ/03-09 T4R SWAYBAR RELOCATION KITAdjustable Compression: NoAdjustable Damping: NOAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: NoBody Diameter: 2.5Coil Over Springs Included: NoCoil Spring Included: NoCoil Spring Insulator(s) Included: NoCompressed Length: 15.67Cylinder Color: GrayCylinder Finish: Hard AnodizedCylinder Material: AluminumCylinder Outside Diameter: 2.5Damping Type: OilDust Shield Included: NoExtended Length: 21.21Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaterial: AluminumMaterial: SteelMaximum Lift: 2Minimum Lift: 0Remote Reservoir: NOReservoir Style: InternalSelf-Leveling: NoService Parts: 252010 – 2.5 IFP REBUILD KITShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center of EyeletShock Absorber Rod End Measuring Point: Shoulder of StemTravel Length: 5.54Upper Mount Type: StemValving Type: Digressive
