Icon 57823P – 2007+ Toyota Tundra RXT Rear 2.5 Series Shocks VS RR – Pair

Description

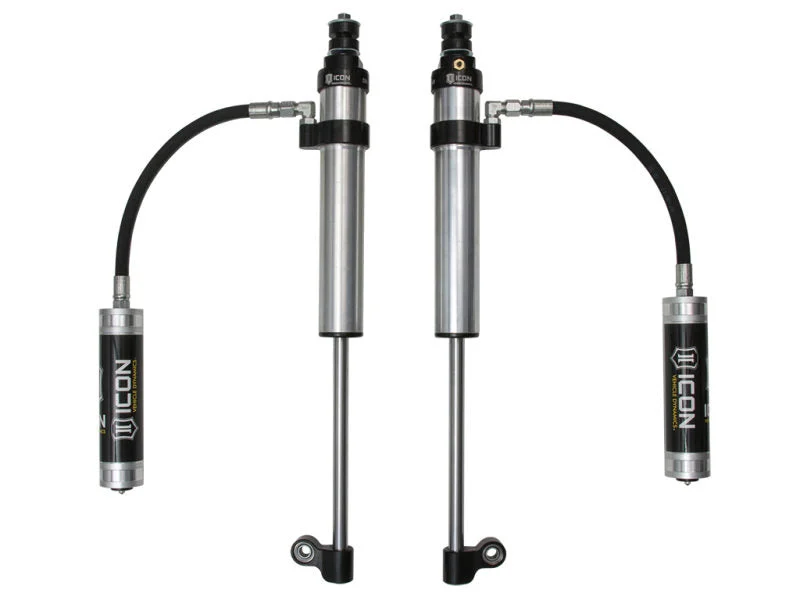

Icon 57823P – 2007+ Toyota Tundra RXT Rear 2.5 Series Shocks VS RR – Pair

07-21 TUNDRA RXT REAR 2.5 VS RR PAIR

2007-2021 TOYOTA TUNDRA RXT REAR 2.5 VS REMOTE RESERVOIR SHOCK PAIR

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON’S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks.

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• Double-sealed Schrader caps reduce risk of damage
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaftS
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: NOBoot Included: NOBore Diameter: 2.25Cylinder Material: AluminumExternal Reservoir: YesGas Charged: YesLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 611008 – 9/16 RXT HEAVY DUTY STEM BUSHING KITService Parts: 191015 – 10″ FINNED RESI UPGRADE KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 257342 – 7/8 SHAFT 16.85 OAL, 12.00 TRAVELService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Shock Absorber Body End Measuring Point: Center of EyletShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 2.5Upper Mount Type: Stem
