Icon 218561DJ – 21-23 RAM TRX Billet UCA DJ Pro Kit

Description

Icon 218561DJ – 21-23 RAM TRX Billet UCA DJ Pro Kit

21-24 RAM 1500 TRX/25-26 RAM 1500 RHO BILLET UCA DJ PRO KIT

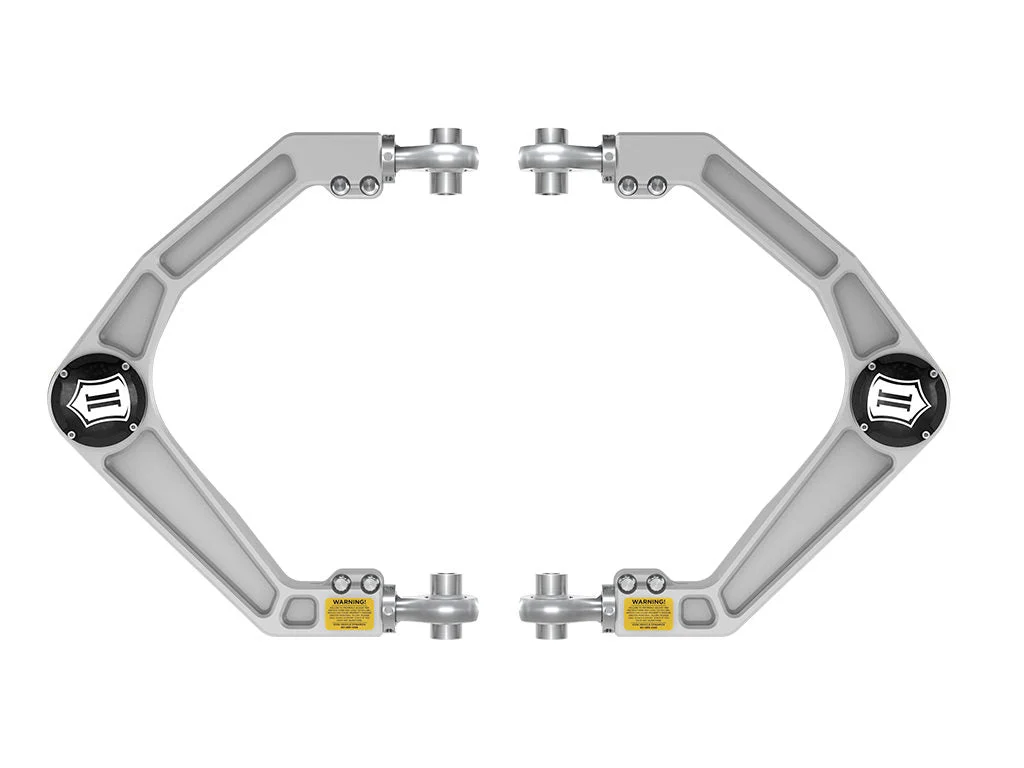

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint Pro, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.

Delta Joint PRO is ICON’s innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows for proper wheel alignment on lifted vehicles
• Quick, precise, on-vehicle adjustment for both caster and camber using ICON’s Double Adjuster System
• Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: IVD2122 – 21-23 RAM TRX 2″ C/O SPACER KITAdjustable: YesAdjustable Control Arm: yesBall Joint Included: YesBall Joint Mounting Type: Press InBall Joint Stud Type: ThreadedBushing Material: Rod End BearingBushings Included: YesConstruction: BilletControl Arm Color: GrayControl Arm Construction: BilletControl Arm Material: AluminumFinish: AnodizedGrade Type: PerformanceGrease Fitting Included: yesMaterial: AluminumMounting Hardware Included: YesOEM Wheels & Tires Fitment: YesPre-Greased: YesQuantity: 2Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 20″ x 9″ with 5″ Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetSuspension Grade Type: Performance
