FAST 170302 – Air/Fuel Meter Dual Sensor Kit Wireless

Description

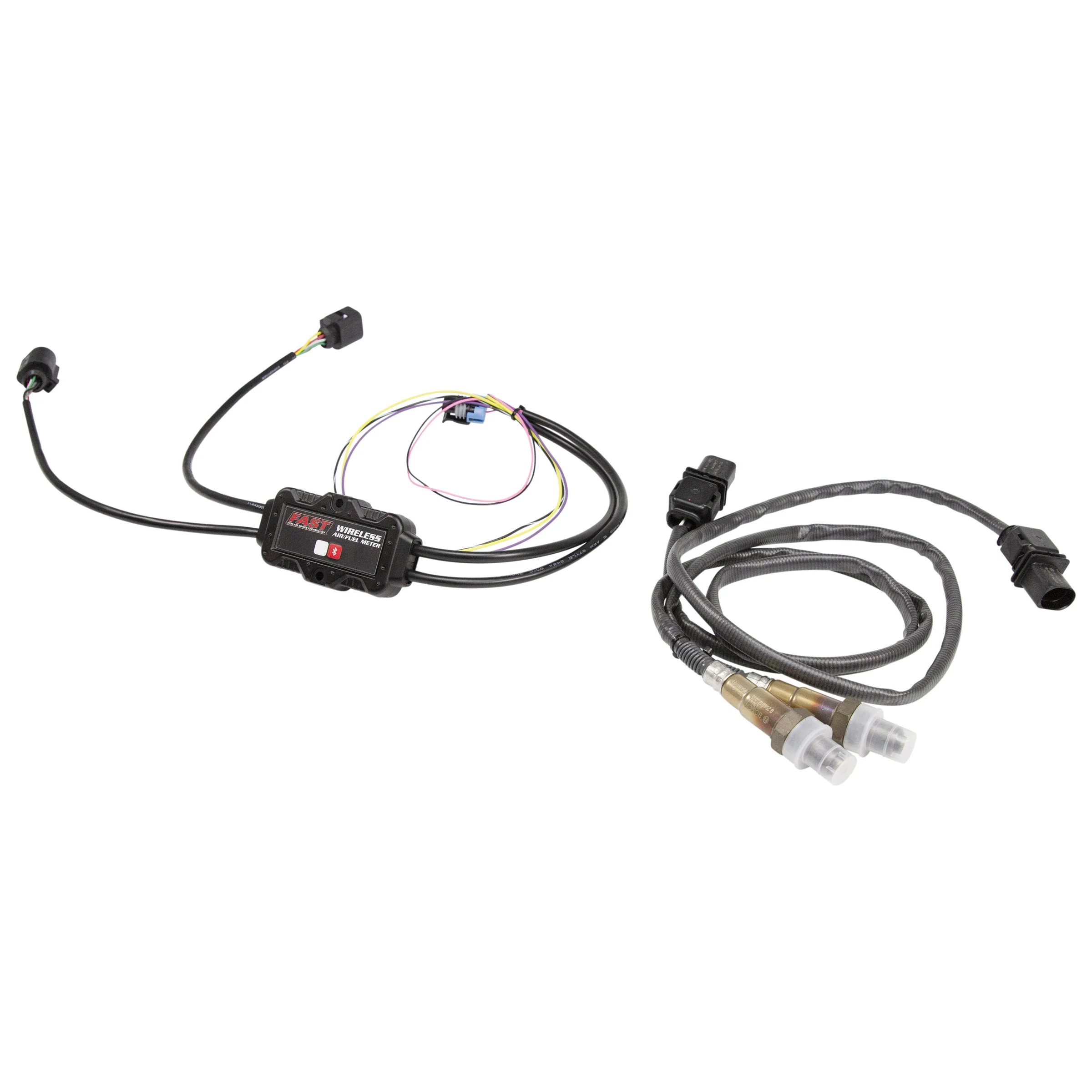

FAST 170302 – Air/Fuel Meter Dual Sensor Kit Wireless

Wireless A/F Meter – Dual Bank

Compatible with all popular fuels, this dual bank Air/Fuel Meter allows for wireless A/F monitoring with iOS and Android applications. Also capable of integration with OE and aftermarket EFI ECU’s as external input.

FAST’s wireless, dual sensor technology measures your engine’s air/fuel ratio with precision accuracy, all from the convenience of your smart phone! FAST has revolutionized the tuning industry with the most advanced, App based, wireless, air/fuel meter. The FAST™ Wireless Air/Fuel Meter uses an underhood mounted Bluetooth module, connected to oxygen sensors in both of your engine’s exhaust outlets, giving you the full story on the state of your engine’s tune. With the FAST Wireless Air/Fuel Meter, you can read both wideband oxygen sensors individually, or average them together for super accurate readings of the engine’s true air/fuel ratio. For engine tuners on a budget, a single sensor version is also available. Easy to use with any iOS or Android device, the FAST Wireless Air/Fuel Meter App includes a simple, built-in data-logger that records up to two minutes of air/fuel and rpm data. Fuel calibrations are pre-loaded for measuring Gasoline, all popular Ethanol blends, Methanol, Diesel and more. Advanced App/Module features include 0-5 volt output for external data-loggers and digital gauges, an rpm activated window switch and a lean air/fuel ratio safety cut-off. Additionally, an innovative Anti-Theft feature has been incorporated that allows you to manually activate/deactivate a vehicle immobilizing relay. A simple way to protect your vehicle from theft! With features unlike anything else on the market, it’s clear the FAST Wireless Air/Fuel Meter is the best choice for the serious engine tuner.

E85 Compatible?: YesGasoline Compatible?: YesDiesel Compatible?: YesMethanol/Alcohol Compatible?: YesEthanol A/F Range: 6.3:1 – 12.2E85 A/F Range: 6.3:1 – 13.2Gasoline A/F Range: 9.5:1 – 20:1Diesel A/F Range: 9.4:1 – 19.7Methanol/Alcohol A/F Range: 4.2:1 – 8.8:1Lambda Range: .65 – 1.36O2 Sensor Type: Bosch LSU 4.9O2 Sensor Count: 2O2 Sensor Wire Length: 39.37O2 Sensor Bungs Included?: YesGauge Included?: Yes, App BasedAdditional Wiring Required?: NoRequired Wiring Connections: Signal Ground, 0-5v Signal Return, Tach Input, Switched power In, Power ground, Optional ->Low Side Relay, Relay power outAndroid Compatible?: YesiOS Compatible?: YesNumber of O2 Sensors Supported?: 2Single O2 Sensor Supported?: YesCapable of Reading O2 Sensors Separately?: YesCapable of Averaging Separate O2 Sensors?: YesMax Exhaust Gas Temperature: 1922Max Operating Exhaust Gas Temperature: 1706Thread Size: M18 x 1.5Sensor Part Number: 170413
