Eagle 2034655900A6 – 4G63 Stock Stroke 88mm Crankshaft

Description

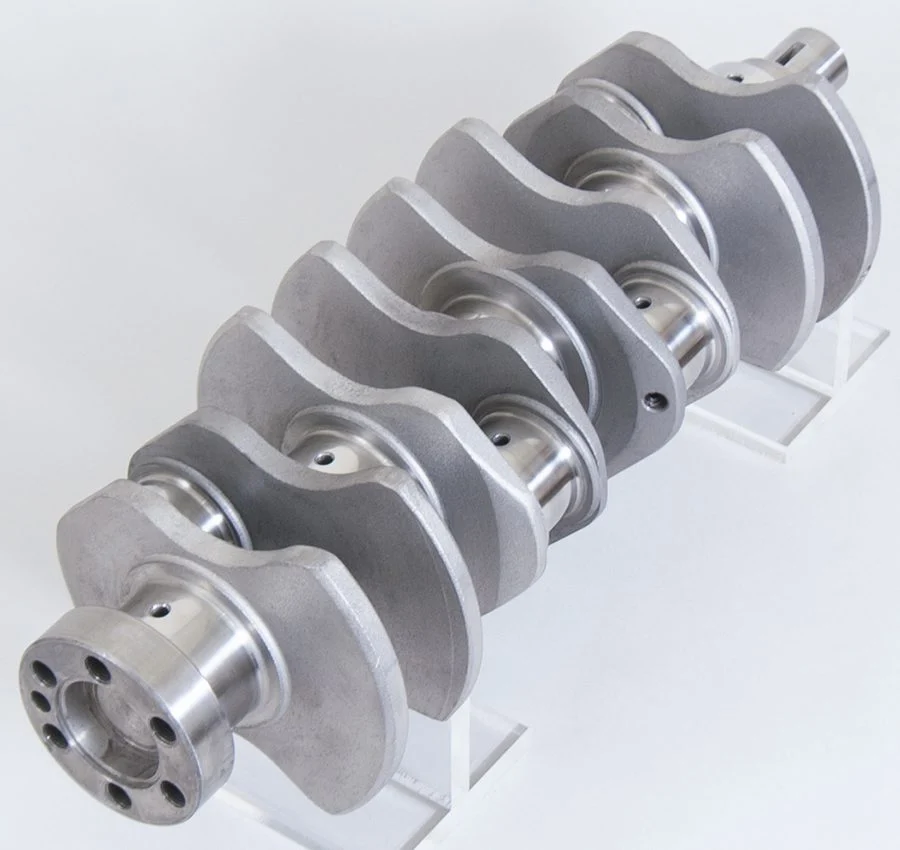

Eagle 2034655900A6 – 4G63 Stock Stroke 88mm Crankshaft

4340 CRANK MITSUBISHI 88MM

Forged 4340 Steel Crank – MITSUBISHI 4G63, 6 BOLT REAR FLANGE.

Eagle forged 4340 steel Cranks feature a non-twist forging, .125″ fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: InternalCrankshaft Stroke: 3.465 inEngine Stroke: 3.465Flywheel Bolt Count: 6Flywheel Register Diameter: callIntended Balance: internalMain Journal: 2.244 inMaterial: Forged 4340 SteelMinimum Rod Length: 5.900 inPilot Bore Diameter: callRear Seal Diameter: callRod Journal Width: 1.13 inRod Journal: 1.771 inSnout Diameter: 1.26 in
