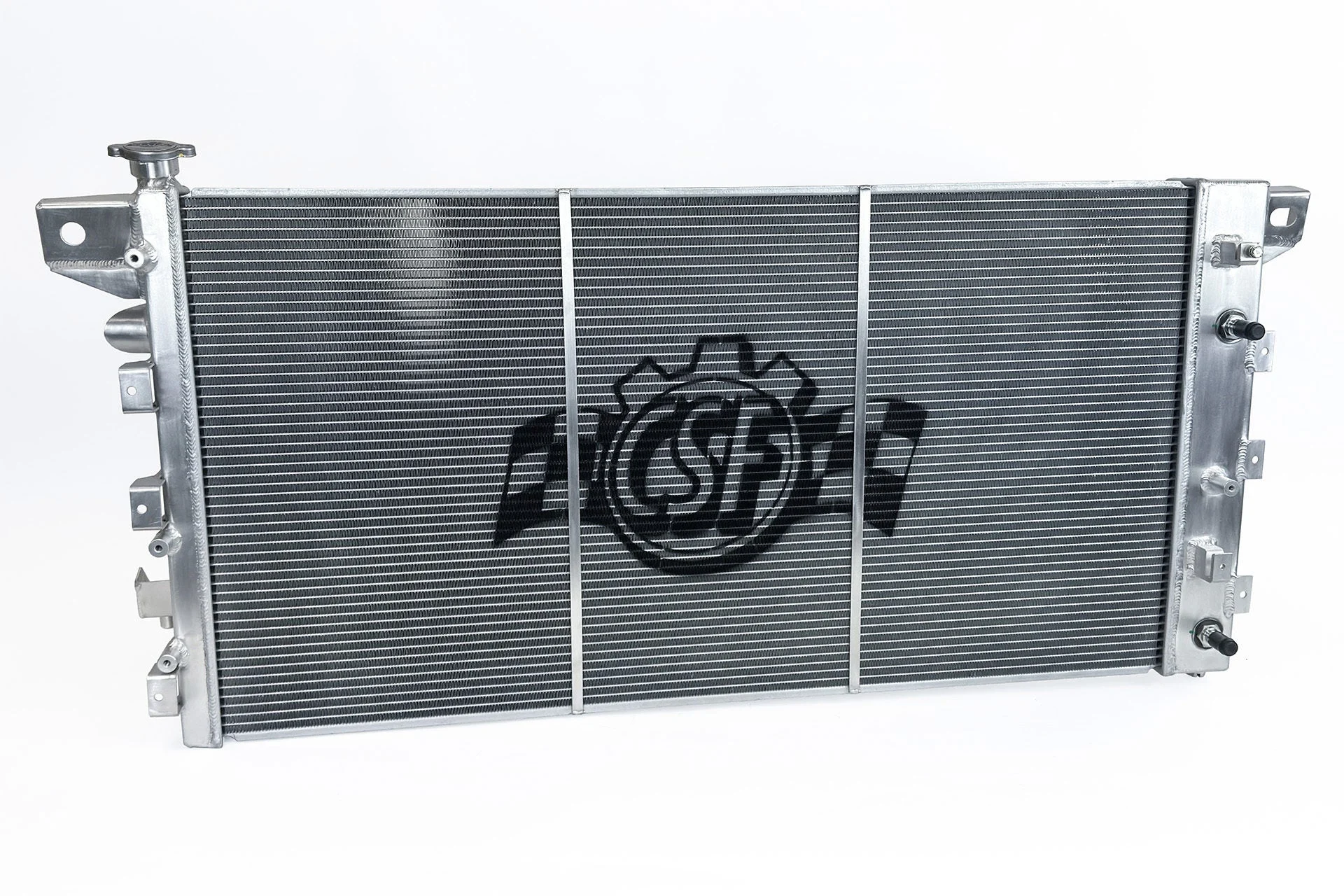

CSF 8095 – 17-20 Ford Raptor / 15-25 F-150 High Performance Radiator

Description

CSF 8095 – 17-20 Ford Raptor / 15-25 F-150 High Performance Radiator

Radiator – 34.75 in W x 17.67 in H x 1.65 in D – Passenger Side Inlet – Driver Side Outlet – Aluminum – Polished – Ford Fullsize Truck 2015-25 – Each

Upgraded cooling systems are not just for off-road rigs & big haulers. Basic upgrades like oversized tires can increase strain on your engine in adverse conditions. CSF delivers the cooling & durability serious truck owners demand.

While some owners never pushed their rigs hard enough to notice, those who did quickly found the factory system lacking. In addition, these trucks are getting to the age where radiators need to be replaced as a maintenance item. If you are going to be doing the labor, you might as well install the best possible radiator. Upgrading to the CSF Radiator offers: 60% larger core volume than the factory radiator. 100% TIG welded Aluminum construction (compared to plastic end tanks crimped). Core straps for strength and added rigidity for extreme reliability in demanding conditions. Ideal for turbo upgrades, high power/boost builds, towing, and off-roading.

• 2-Row – 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and Brackets
• OEM Style Inlet/Outlet
• Core straps for strength and added rigidity
• Includes two barb fittings that fit into pre-plugged ports for the different coolant overflow/expansion tank setups
• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Core Row Quantity: 2Grade Type: PerformanceRadiator Cap Included: YesOutlet Connector Type: Quick ConnectInlet Connector Type: Slip OnDown Flow Or Cross Flow Type: Cross FlowInternal Engine Oil Cooler: NoInternal Transmission Oil Cooler: NoOutlet Location: Bottom LeftInlet Location: Top RightOutlet Diameter: 38mmInlet Diameter: 38mmCore Width: 449mmCore Material: AluminumCore Thickness: 42mmCore Height: 882.5mmMounting Hardware Included: NoThermostat Included: NoTank Material: AluminumMounting Type: Mounts with OE HardwareFrame Included: NoCoolant Hose Outlet Connection Type: OE Type ConnectionCoolant Hose Inlet Connection Type: OE Type ConnectionInstallation Type: Drop-In Fit InstallationFinish/Color: SatinADD-ON: 8102
