CSF 7242 – 2019+ 992.1/992.2 Porsche 911(3.0LT Base/T/S/4/4S/GTS/4 GTS) High Perf Right Aluminum Radiator

Description

CSF 7242 – 2019+ 992.1/992.2 Porsche 911(3.0LT Base/T/S/4/4S/GTS/4 GTS) High Perf Right Aluminum Radiator

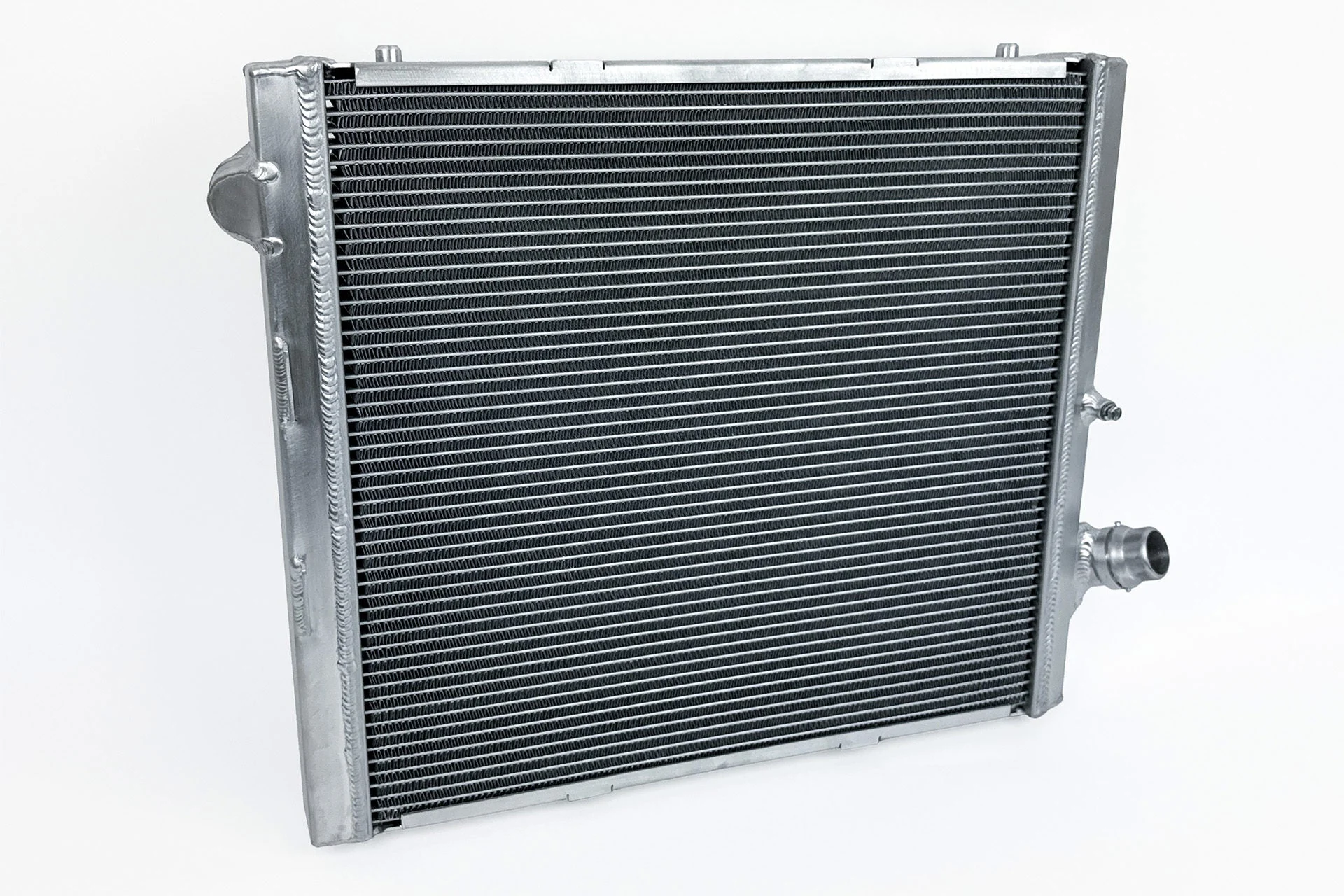

Porsche 992 911 High-Performance All-Aluminum Radiator (Right)

Every 911 owner can benefit from an upgraded cooling system. Whether you’re building a street sleeper or prepping for your next track day, CSF’s 992 Radiators are engineered to handle the heat and then some.

The CSF radiators feature the latest 5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Combined with the new 5mm fins, heat transfer is increased by up to 25% overall. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

• 2-Row – 42mm High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Core Row Quantity: 2Grade Type: PerformanceRadiator Cap Included: NoOutlet Connector Type: Quick ConnectInlet Connector Type: Slip OnDown Flow Or Cross Flow Type: Cross FlowInternal Engine Oil Cooler: NoInternal Transmission Oil Cooler: NoOutlet Location: Bottom LeftInlet Location: Top RightOutlet Diameter: 39mmInlet Diameter: 35mmCore Width: 374mmCore Material: AluminumCore Thickness: 42mmCore Height: 400mmMounting Hardware Included: NoThermostat Included: NoTank Material: AluminumMounting Type: Mounts with OE HardwareFrame Included: NoCoolant Hose Outlet Connection Type: OE Type ConnectionCoolant Hose Inlet Connection Type: OE Type ConnectionInstallation Type: Drop-In Fit InstallationFinish/Color: SatinADD-ON: 7241
