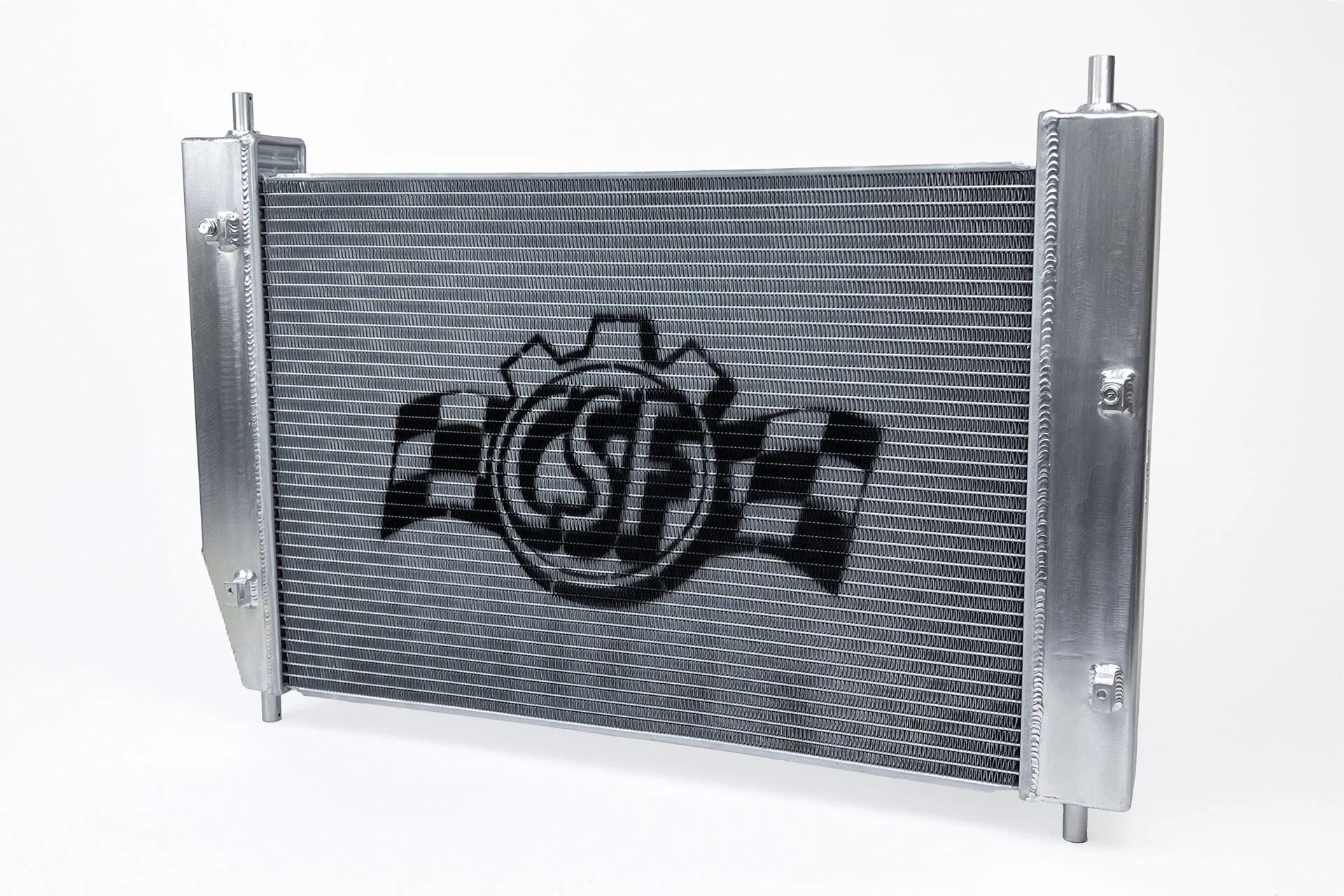

CSF 7223 – 05-13 Chevrolet Corvette C6 (Not 11-13 Z06/ZR1/427) High Performance All-Aluminum Radiator

Description

CSF 7223 – 05-13 Chevrolet Corvette C6 (Not 11-13 Z06/ZR1/427) High Performance All-Aluminum Radiator

05-13 Chevrolet C6 Corvette Base/Grand Sport/427/Z06 All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your C6 Corvette. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF is quite familiar with GM performance vehicles so creating a high-performance radiator for the C6 Corvette made a lot of sense. Also given the age of the C6, there are a lot of owners ready to upgrade or looking to replace their original radiators. The goal was to create a model that could fit all of the C6 Corvette trims and work with the majority of upgrades and modifications. CSF teamed up with A&A Corvette to develop this radiator. As experts exclusively developing products for Corvettes for over 20 years, they were the perfect R&D Partner for this radiator. This new design coupled with a core that has 193% more volume than the factory radiator offers a massive upgrade in cooling capacity. The CSF Radiator also offers the best value of any aftermarket radiator coming in hundreds of dollars less than competitors.

• 2-Row, 52mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Shorter core height provides clearance for supercharger installations
• No need to modify the radiator core support or trim the radiator
• Fits all OEM and Aftermarket Intake Systems
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Mounting Pins have Cotter Pin Holes for securing A&A Corvette’s Top Shroud
• Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Core Width: 421mmRadiator Cap Included: NoOutlet Connector Type: Slip OnInlet Connector Type: Slip OnDown Flow Or Cross Flow Type: Cross FlowInternal Engine Oil Cooler: YesInternal Transmission Oil Cooler: YesOutlet Location: Bottom RightInlet Location: Top LeftOutlet Diameter: 32mmInlet Diameter: 32mmCore Row Quantity: 2Core Thickness: 52mmCore Material: AluminumCore Height: 594mmMounting Hardware Included: NoThermostat Included: NoTank Material: AluminumMounting Type: Mounts with OE HardwareFrame Included: NoCoolant Hose Outlet Connection Type: OE Type ConnectionCoolant Hose Inlet Connection Type: OE Type ConnectionInstallation Type: Drop-In Fit InstallationFinish/Color: SatinGrade Type: Performance
