CSF 7213 – 15-19 Subaru Legacy and Outback 2.5L High-Performance All-Aluminum Radiator

Description

CSF 7213 – 15-19 Subaru Legacy and Outback 2.5L High-Performance All-Aluminum Radiator

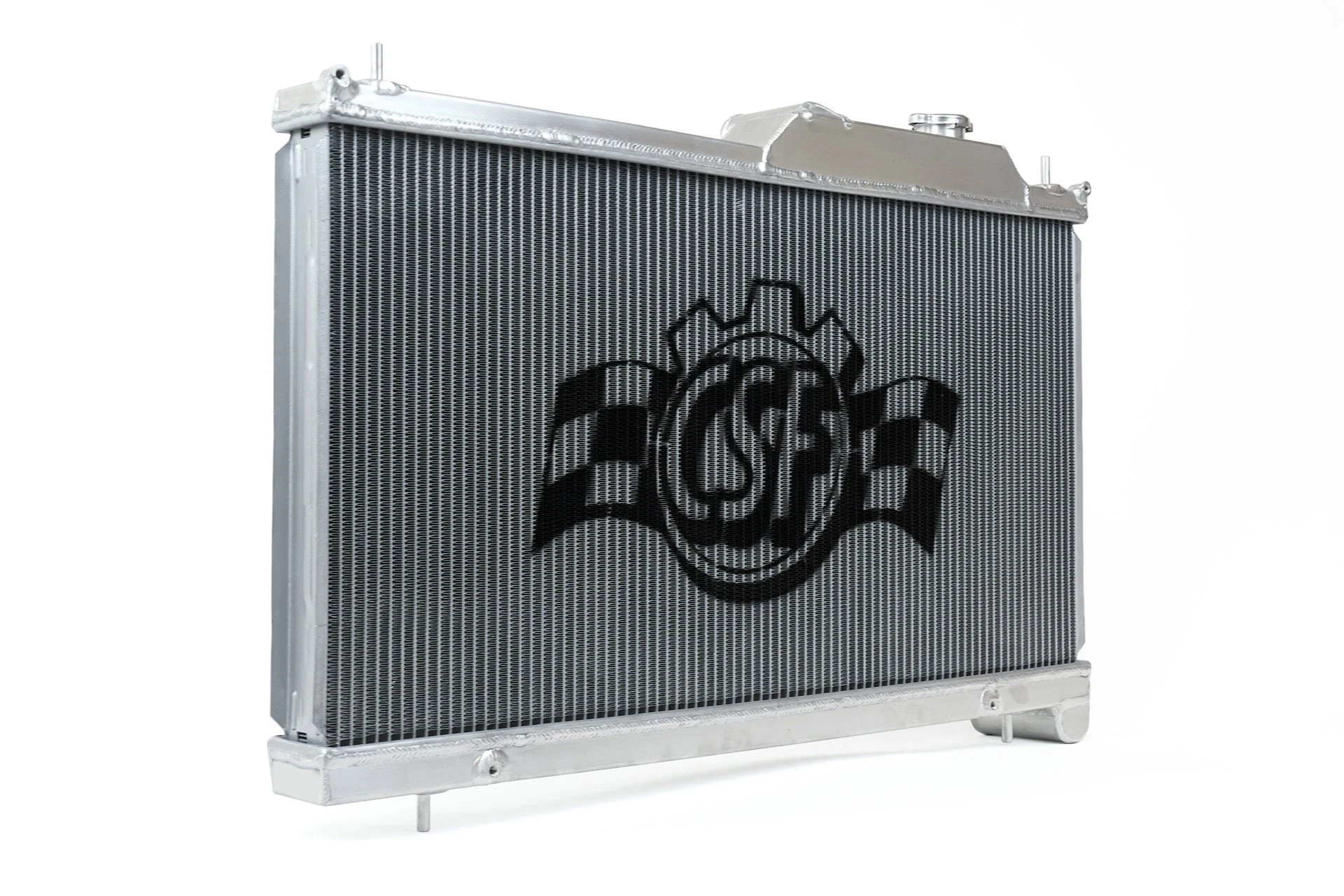

6th Gen Subaru Outback/Legacy High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Outback/Legacy. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The 42mm 2-Row aluminum core not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology improves heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Efficiency is key in off-roading as speeds tend to be lower overall so you end up relying on the fans to move most of the air over the radiator. While the factory fans do a decent job pulling air through the radiator core, it is still less airflow than you’d typically see in city driving. A larger and more efficient core will keep your engine temps in check and keep your engine running strong. Also, a larger core also helps when your radiator is covered in dust, dirt, or mud. While a radiator isn’t functioning at peak efficiency in there situations, the more overall cooling capacity you have the better. In Addition, the end tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast, the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application, installation requires absolutely no modifications, trimming, or cutting.

• 2-Row – 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Core Material: AluminumCore Width: 27 in.Radiator Cap Included: YesOutlet Connector Type: Slip OnInlet Connector Type: Slip OnDown Flow Or Cross Flow Type: Down FlowInternal Engine Oil Cooler: NoInternal Transmission Oil Cooler: NoOutlet Location: Bottom RightInlet Location: Top CenterOutlet Diameter: 1.5625 in.Inlet Diameter: 1.5625 in.Core Row Quantity: 2Core Thickness: 42mmCore Height: 13.75 in.Mounting Hardware Included: NoThermostat Included: NoTank Material: AluminumMounting Type: Mounts with OE HardwareFrame Included: NoCoolant Hose Outlet Connection Type: OE Type ConnectionCoolant Hose Inlet Connection Type: OE Type ConnectionInstallation Type: Drop-In Fit InstallationFinish/Color: SatinGrade Type: Performance
