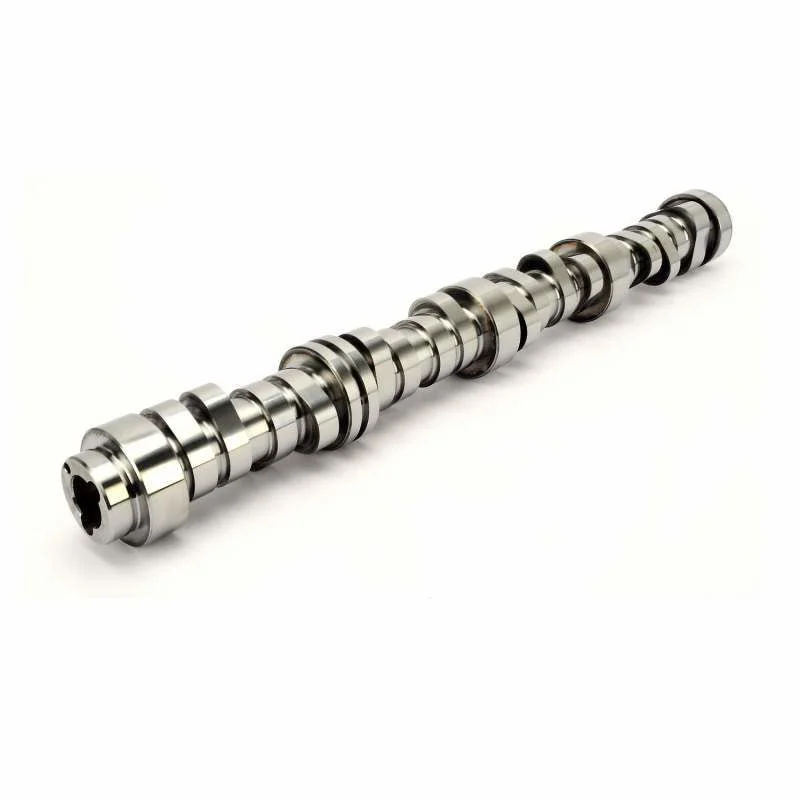

COMP Cams 624-524-13 – Camshaft GM Gen V LT1 Ltav 27

Description

COMP Cams 624-524-13 – Camshaft GM Gen V LT1 Ltav 27

Camshaft – XFI – Hydraulic Roller – Lift 0.572 / 0.529 in – Duration 270 / 282 – 116 LSA – 1800 / 6900 RPM – GM Small Block – Each

Great all around performance and best choice for mildly modified LT1 applications with AFM enabled.

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM’s Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Camshaft Material: Billet SteelEngine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)Lifter Type: Hydraulic RollerAssembly Lubricant Included: NoValve Springs Required: YesLifters Included: NoAmazon ASIN: B00N6LRB8EC.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for On-Road Vehicles?: NoC.A.R.B. Exemption Reason: N/AC.A.R.B. E.O. Number: N/AGrind Number: 270PIIHR17Camshaft Series: XFI AFMUsage: Street/PerformanceCam Type: Hydraulic RollerGrind Number: 270PIIHR17Basic Operating RPM Range: 1,800-6,900Intake Duration at .050 Inch Lift: 218Exhaust Duration at .050 inch Lift: 230Advertised Intake Duration: 270Advertised Exhaust Duration: 282Lobe Separation: 117Intake Valve Lift: 0.572Exhaust Valve Lift: 0.529
