COMP Cams 4700-16 – Spring Seat Cups 1.550

Description

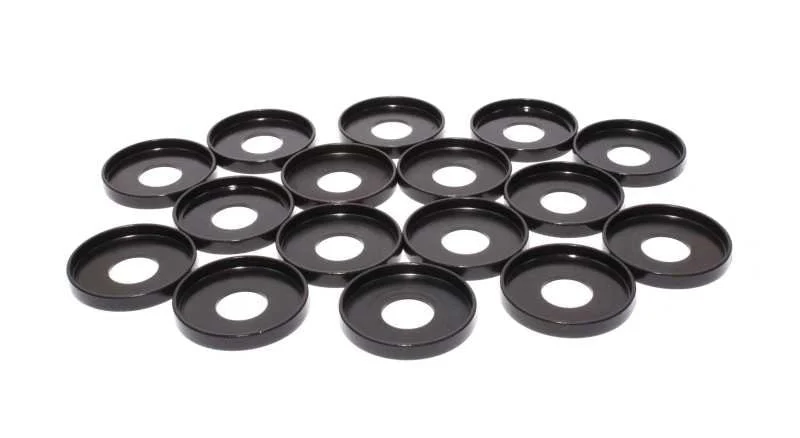

COMP Cams 4700-16 – Spring Seat Cups 1.550

Valve Spring Locator – Outside – 0.060 in Thick – 1.670 in OD – 0.640 in ID – 1.565 in Spring OD – Steel – Set of 16

Constructed from hardened steel alloy, COMP’s locator cups handle high RPM and extreme spring pressures while holding the spring. Our 4700 features a 1.670″ OD with a .640″ ID that works with a number of our valve springs.

The old standard shims will not hold up to the extreme spring pressures and high RPM in today’s race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.

Locator Inner Diameter: 0.64Locator Outer Diameter: 1.67Spring Outer Diameter: 1.565Amazon ASIN: B000CEM56GC.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.C.A.R.B. Exempt for On-Road Vehicles?: YesC.A.R.B. Exemption Reason: No impact on pollution output of vehicle.C.A.R.B. E.O. Number: N/AInside Diameter: .640″Outside Diameter: 1.67Spring Inside Diameter: 1.565″Locator Thickness: .060″
