Description
COMP Cams 26906TS-KIT – Kit, Valve Spring- Beehive 1.28In O.D. Ls6 Plus-W/ Light Weight Tool Steel Retainers
LS6+ Beehive Valve Spring Kit w/ Tool Steel Retainers, 0.580″ Max Lift

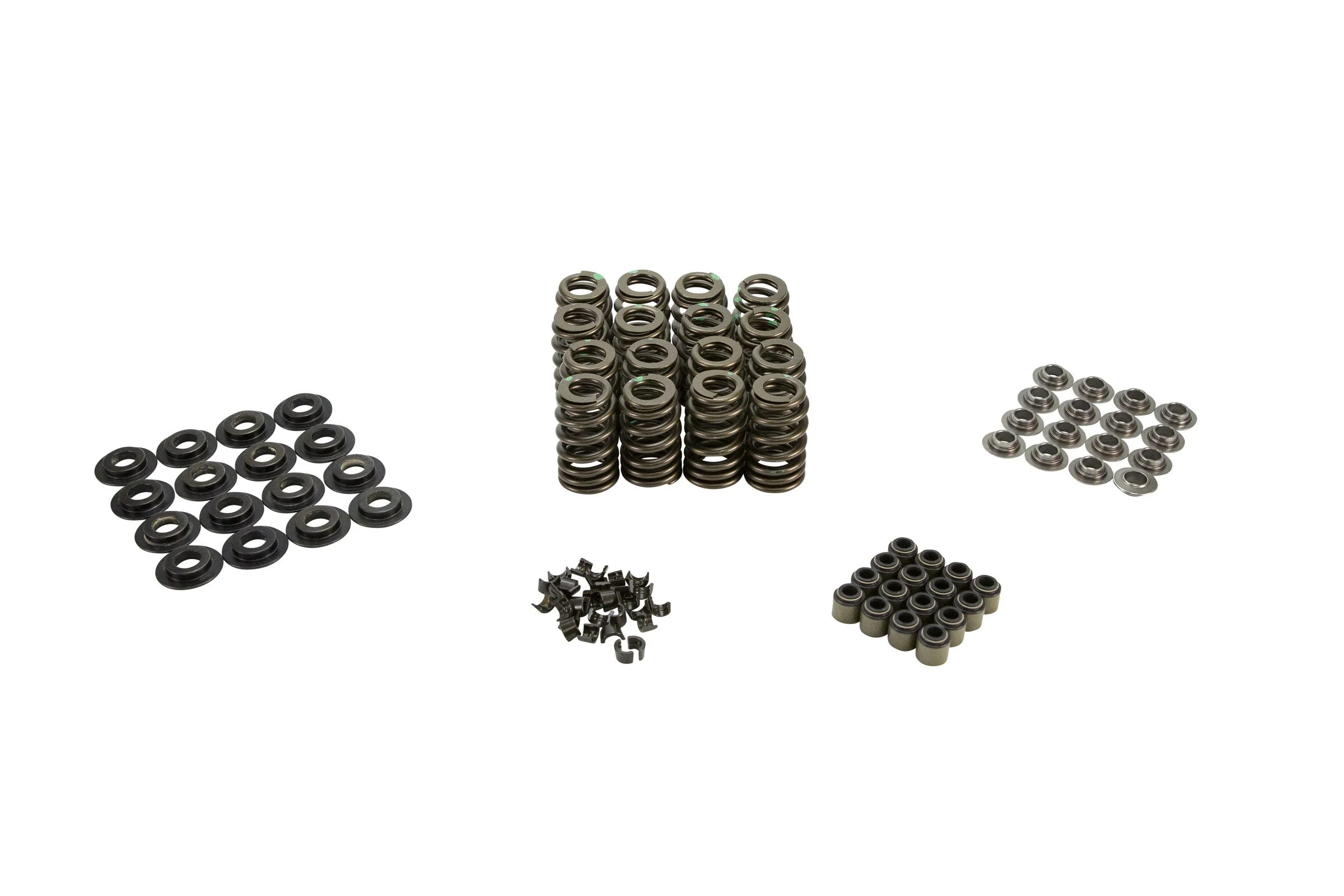

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and tool steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580″ valve lift.
The COMP Cams 0.575″ Lift Beehive LS6+ Valve Spring Kit Features:r
- r
- 4% higher load and .030″ higher lift capacity than Blue GM LS6 Springs
- Includes springs, Tool Steel retainers, valve locks, Seals, and spring seats
r
r
Compatible Shims: 4753Spring Top Outside Diameter: 1.077Spring Top Inside Diameter: 0.655Spring Bottom Outside Diameter: 1.282Spring Bottom Inside Diameter: 0.860Locator Thickness: 0.0600Locator Outer Diameter: 1.300Locator Inner Diameter: 0.510Valve Seal Outer Diameter: 0.600Includes Valve Seals: YesValve Seal Type: Steel Jacketed VitonIncludes Spring Seats: YesIncludes Locks: YesRetainer Material: Tool SteelIncludes Retainers: YesMax Lift: 0.580Valve Spring Type: BeehiveSeat Pressure: 92Seat Height: 1.800Coil Bind Height: 1.181Engine Fitment: GM LS Cathedral and Rectangle Port Applications
