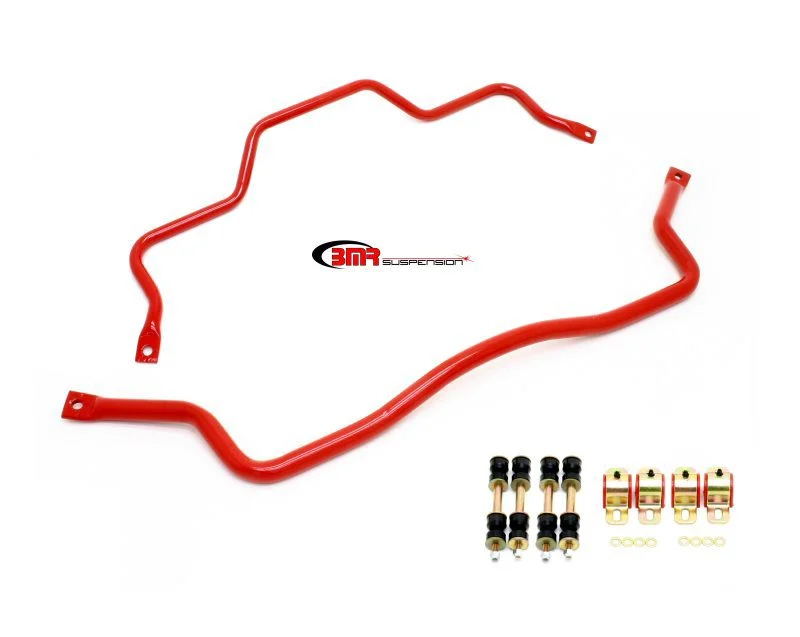

BMR SB026R – 93-02 F-Body Front & Rear Sway Bar Kit w/ Bushings – Red

Description

BMR SB026R – 93-02 F-Body Front & Rear Sway Bar Kit w/ Bushings – Red

Sway Bar – Front / Rear – 32 mm Diameter Front – 25 mm Diameter Rear – Greasable Polyurethane Bushings – Steel – Red Powder Coat – GM F-Body 1993-2002 – Kit

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR’s suspensions SB026 front and rear sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 35mm (front) and 25mm (rear) DOM tubing, the SB026 is cold formed to better resist torsional fatigue and retain its “memory” far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection.BMR’s suspension designed the SB026 sway bar for street performance, autocross, and road race applications.

Front Sway Bar Adjustable: FixedFront Sway Bar Diameter (in): 1.375 inchesFront Sway Bar Diameter (mm): 35.0 mmFront Sway Bar Type: HollowMounting Hardware Included: YesPosition: Front and rearQuantity: Sold as a kitRear Sway Bar Adjustable: FixedRear Sway Bar Diameter (in): 1.00 inchesRear Sway Bar Diameter (mm): 25.0 mmRear Sway Bar Type: HollowSway Bar Finish: Red powdercoatedSway Bar Material: Steel
