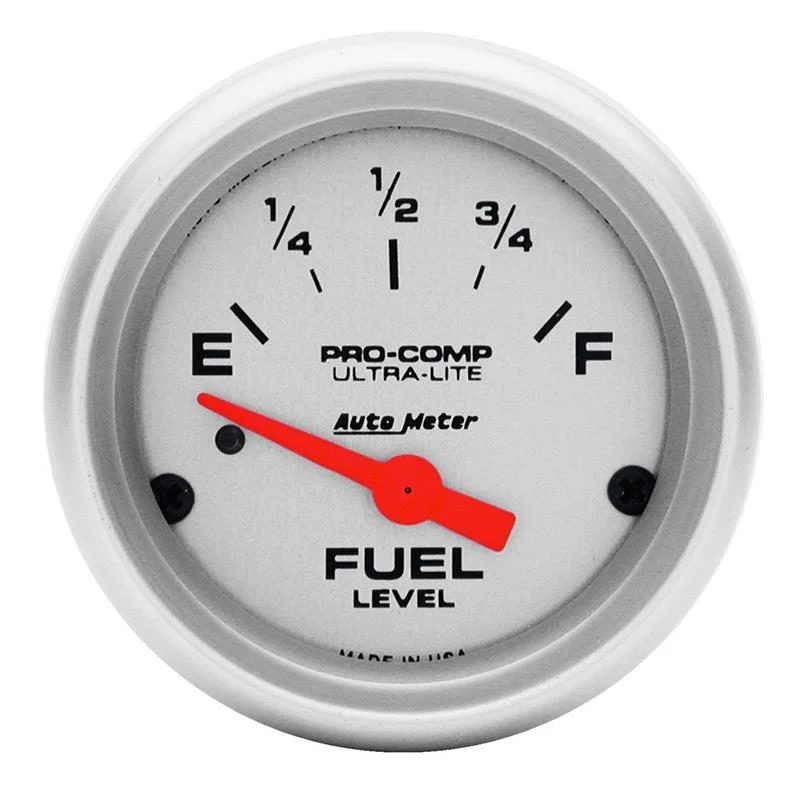

AutoMeter 4314 – Ultra-Lite 52mm 0 OHMS Empty/90 OHMS Full Short Sweep Electronic Fuel Level Gauge

Description

AutoMeter 4314 – Ultra-Lite 52mm 0 OHMS Empty/90 OHMS Full Short Sweep Electronic Fuel Level Gauge

Fuel Level Gauge – Ultra-Lite – 0-90 ohm – Electric – Analog – Short Sweep – 2-1/16 in Diameter – Silver Face – Each

Traditional incandescent lighting illuminates around the perimeter of the dial

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

• Incandescent Lighting Illuminates Around Perimeter Of Dial
• 12 And 16V Compatible
• Works w/Most 1965-1997 GM Senders
• Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
• Incl. Mounting Hardware/Instructions
• Air-Core Electric Instruments Provide Quick And Accurate Readings

Analog Or Digital: AnalogBezel Color: Brushed AluminumBezel Style: Super BezelBlock Adapter Included: NoBulb and Socket Number: 3220Bulb Technology: IncandescentElectric Or Mechanical: ElectricFace Color: SilverFuel Line Adapter Included: NoGauge Adapter Included: NoGauge Size: 2.0625 in.Gauge Size: 52.4mmHole Size: 52.4mmIlluminated: YesLens: Flat ClearLighting Color: White IncandescentLighting Type: IncandescentLiquid Filled: NoMounting Bracket Number: 2230Number Color: BlackOuter Bezel Diameter: 2.250 in.Pointer Color: Fluorescent RedPressure: 0-100 PSISize: 2.3125 in.Voltage: 8-18 V
