Description

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo DL

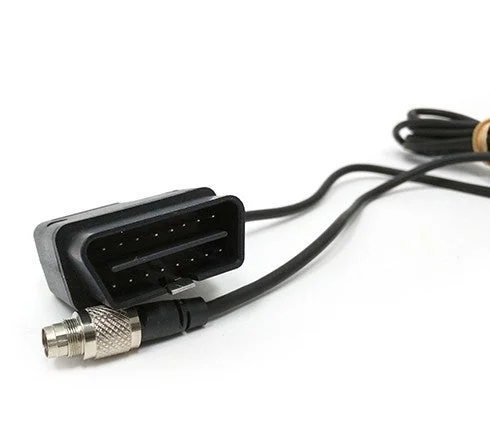

AiM Solo DL to OBD-II Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBD-2) plug to fit the diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo DL. OBD-II is also known as K-Line

This is the same cable supplied with the original AiM Solo DL for OBD-II.

Does not fit the new Solo2 DL.

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo DL Details:

• Manufacturer: AiM
• Manufacturer part number: V02569010
• AiM Alternate part number: MC-568
• End 1: AiM 7 Pin 712 (thread on)
• End 2: OBD-2 (K-Line)
• Fits AiM Solo: No
• Fits AiM Solo DL: Yes
• Fits AiM Solo 2: No
• Fits AiM Solo2 DL: No

Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD “Rev 1”. The version 1 can be identified by a 7/8″ diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8″ OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws.
