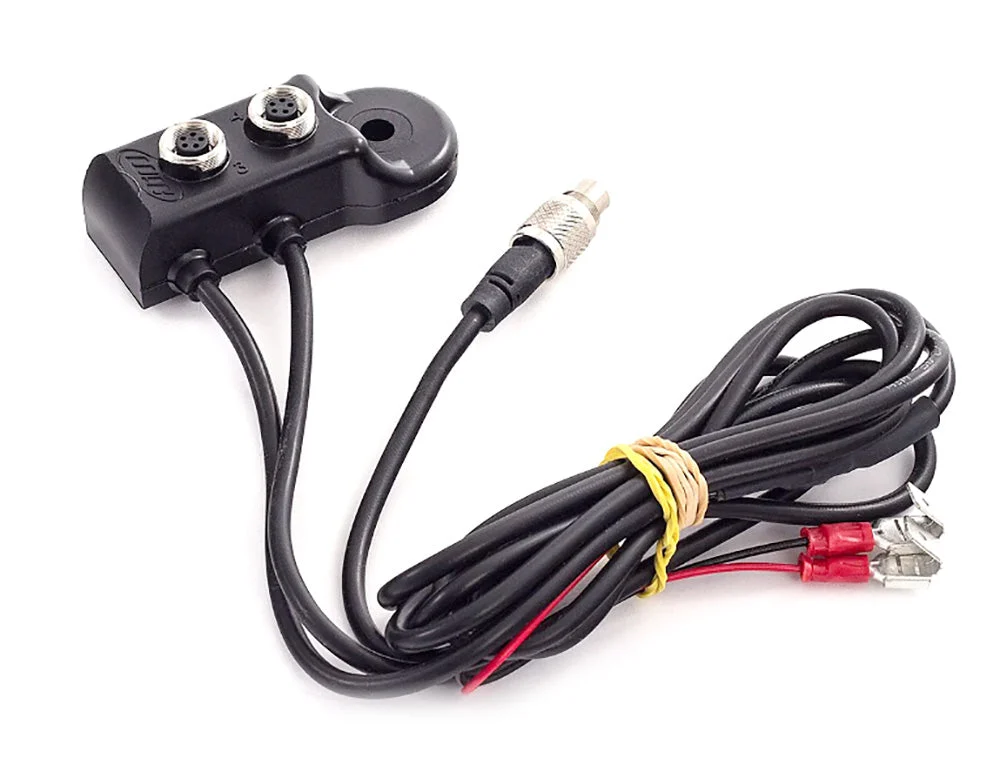

AiM Data Hub Connects SmartyCam 2.0 & Older to GPS09C

Connect the latest AiM GPS09C GPS module to a stand-alone SmartyCam HD or GP-HD (prior to version 2.1) with this special AiM powered data hub.

AiM DATA HUB OLDER SMARTYCAM TO GPS09C DETAILS

• Manufacturer: AiM Sports
• Manufacturer part no: X08HB2GK3
• Wiring leads 1: Red (12VDC)
• Wiring lead 2: Black (ground)
• Port 1: Female Binder 712 5-pin
• Port 2: Female Binder 712 5-Pin

ADD GPS TO YOUR OLDER SMARTYCAM

The AiM SmartyCam HD and SmartyCam GP-HD (prior to version 2.1) were designed to work with dedicated SmartyCam GPS modules, especially when the camera was used as a stand-alone unit. This older GPS module is no longer available, so the AiM Data Hub allows users needing a GPS module to plug the latest AiM GPS09C directly into their older SmartyCam.

This SmartyCam/GPS09C Data Hub hosts both the GPS09C module and the SmartyCam CAN cable via its two Binder 712 5-pin ports. The Data Hub also provides an external 12VDC cable to be connected to a vehicle electrical system. As a modified version, this SmartyCam/GPS Data Hub will not connect to an existing AiM data-logger.
