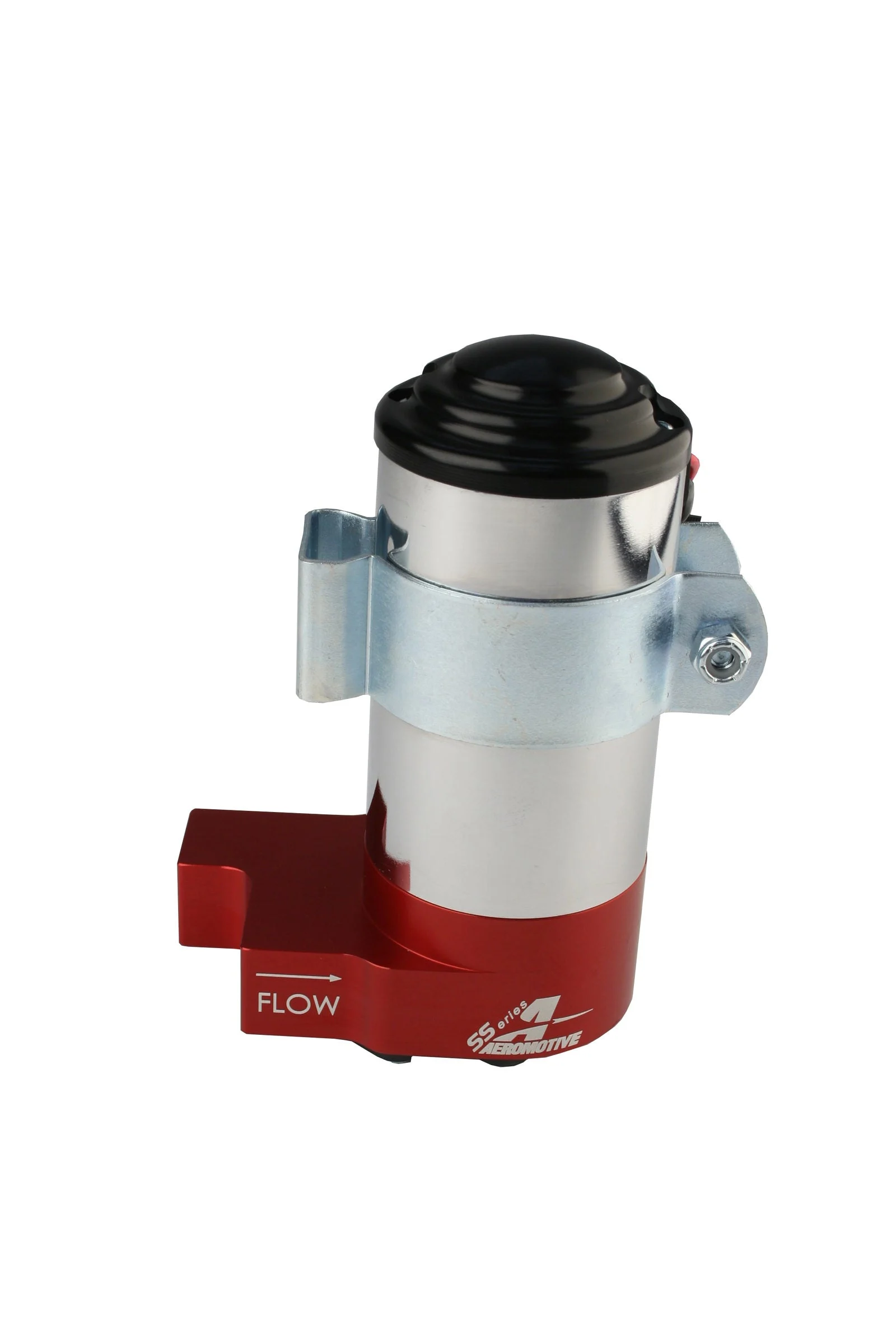

Aeromotive 11213 – SS Series Billet (14 PSI) Carbureted Fuel Pump w/AN-8 Inlet and Outlet Ports

Description

Aeromotive 11213 – SS Series Billet (14 PSI) Carbureted Fuel Pump w/AN-8 Inlet and Outlet Ports

Fuel Pump – SS – Electric – In-Line – 140 gph Free Flow – 8 AN Female O-Ring Inlet / Outlet – 14 psi Internal Regulator – Red – E85 / Gas – Each

SS Series Billet (14 PSI) Carbureted Fuel Pump with (AN-8) Inlet and Outlet Ports.

A carbureted fuel pump that allows you to step up your performance by maintaining optimal line pressure and delivering high volume. The Street/Strip Pump was engineered for 200-750 HP carbureted engines making this a perfect choice for a daily driver, street rod, or demanding ET-bracket race car. P/N 11213 features ORB-08 inlet and outlet ports. Perfect for use with either a Bypass Regulator (P/N 13301) or one of our Carbureted Adjustable Regulators. (P/N 13201, 13205). Fuel flow exceeds 140 GPH at 13.5 volts. Pump provides 14 PSI fuel pressure – perfect for cars that leave hard. Pumping mechanism features our proprietary composite rotor, stainless steel vanes and precision ground, heat treated steel plates. Ideal for dedicated nitrous delivery. Alcohol compatible. Low current draw. (under 5 amps).

Carb HP on E85: 525Carb HP on Gas: 750Filter Included: NoFuel Delivery Type: CarburetedFuel Sending Unit Included: NoFuel Type: Gas/E85Gasket Or Seal Included: NoGrade Type: PerformanceInlet Outside Diameter: ORB-08Inlet Type: Female ThreadIntegrated Controller: NoMarine Approved: NoMaximum Current Draw: 5Maximum Flow Rating: 140 GPHMaximum Pressure: 100Motor Style: BrushedMounting Bracket Included: YesMounting Hardware Included: NoNegative Ground: YesOutlet Outside Diameter: ORB-08Outlet Type: Female ThreadPulse Width Modulation Compatible: YesPump Design: Rotary VaneRegulator Included: NoSeal And Lock Ring Included: NoSeries: SSStrainer Included: NoTerminal Quantity: 0Terminal Type: Lead WireUniversal Or Specific Fit: UniversalVoltage: 12Wire Quantity: 2Wiring Harness Included: No
