Aeromotive 11115 – Atomic Belt Drive Fuel Pump

Description

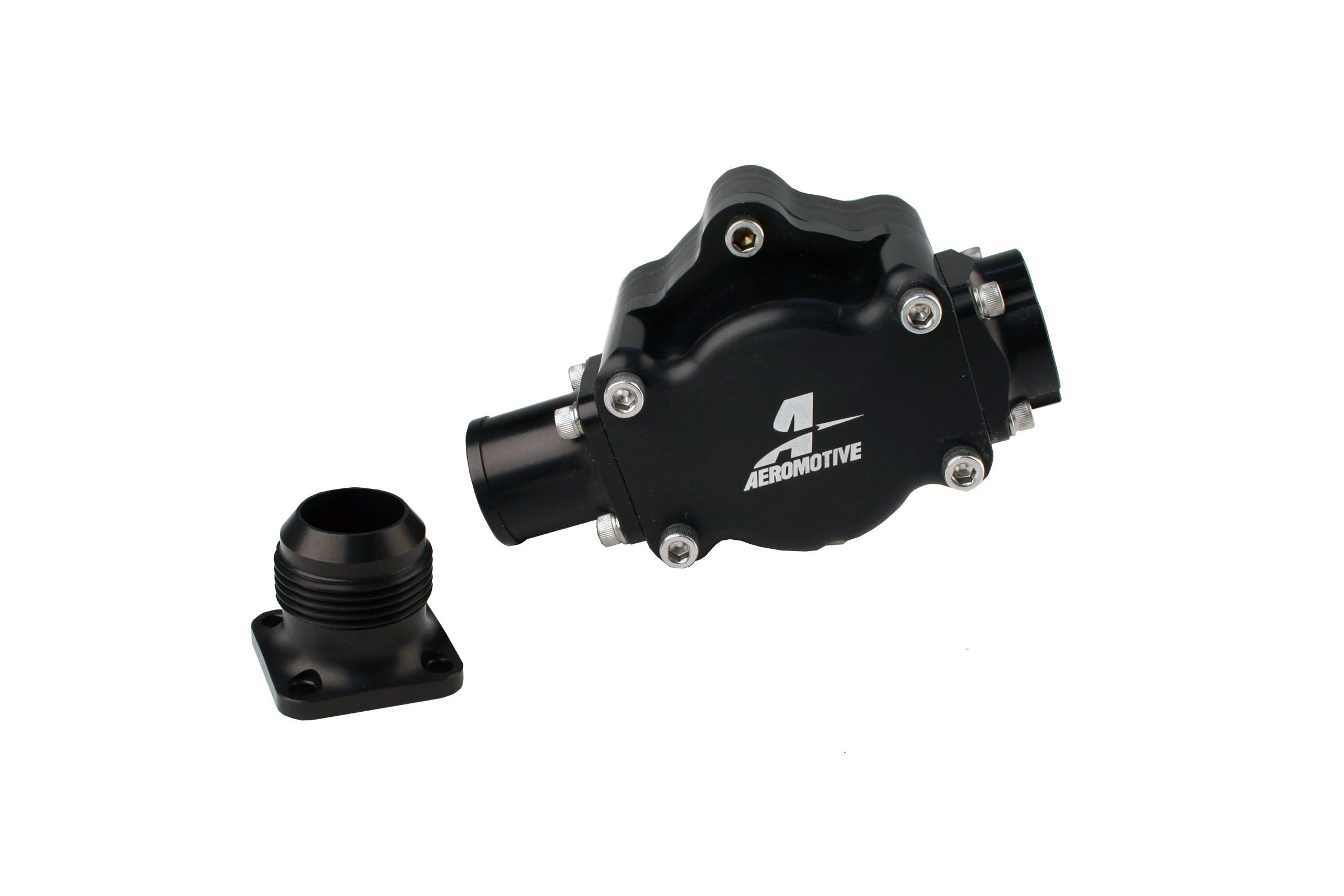

Aeromotive 11115 – Atomic Belt Drive Fuel Pump

Fuel Pump – Atomic Belt Drive – Belt or Hex Driven – In-Line – 1-1/4 in Hose Barb Inlet – 12 AN Female O-Ring Outlet – Black – E85 / Gas – Each

12 GPM Billet Belt Drive Mechanical Fuel Pump.

12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25′ barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).

• Flows up to 12 GPM
• 5,000+ HP on gas, up to 2500 HP methanol.
• High efficiency, Gerotor pumping mechanism.
• Tough, Type III hard coat anodized body.
• CNC Machined from 6061 T6 aircraft aluminum.
• Includes both 1.25′ barb and AN-16 Male inlet.
• ORB-12 female outlet port.
• EFI applications require high-flow return style regulators:rP/N 13132,  13133,  13137 or  13113.
• Sold Separately:rMounting Bracket: P/N 11706rCog Pulley: P/N 21109.rElectric Priming/Starting Kit:  P/N 17301

EFI HP on Gas: 5000Inlet Diameter: 1.25Inlet Outside Diameter: ORB-16Mounting Type: ExternalOutlet Diameter: 0.75Outlet Outside Diameter: ORB – 12
